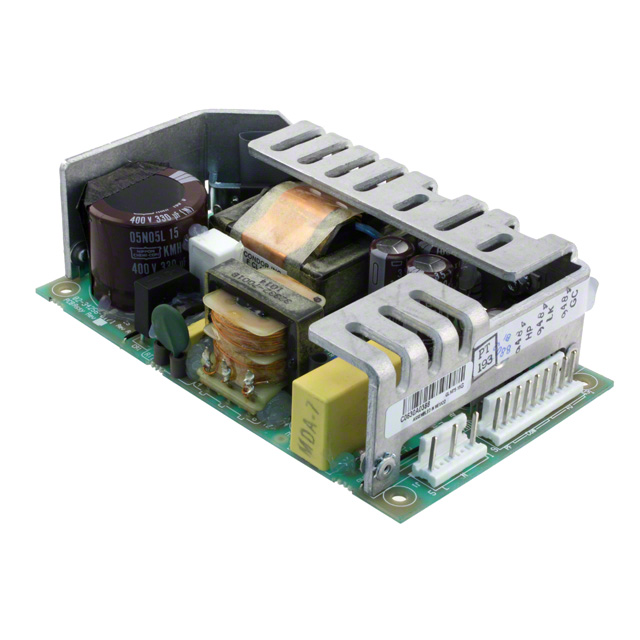

GLM75-15G

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 15V 75W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 15V 75W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 15V 75W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Mounting Type	Power (Watts)	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Features	Minimum Load Required	Efficiency	Type	Voltage - Output 1	Applications	Current - Output 1
SL POWER / Advanced Energy GLM75-15G	90 VAC	264 VAC	1	Chassis Mount	75 W	CE, cURus, TUV	108 mm	7 "	4.25 in	33 mm	177.8 mm	1.3 "	Universal Input		78 %	Open Frame	15 V	Medical	5 A
SL POWER / Advanced Energy GLM75-24G	90 VAC	264 VAC	1	Chassis Mount	75 W	CE, cURus, TUV	108 mm	7 "	4.25 in	33 mm	177.8 mm	1.3 "	Universal Input		78 %	Open Frame	24 V	Medical	3.1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input

Technical documentation and resources
