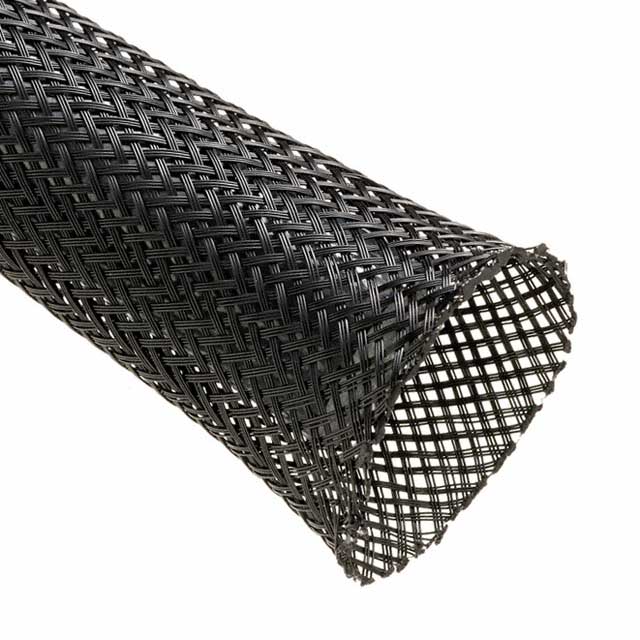

NYN0.75BK75
ActiveTechflex
EXPAND SLEEVE 3/4" X 75' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
NYN0.75BK75
ActiveTechflex
EXPAND SLEEVE 3/4" X 75' BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NYN0.75BK75 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Color | Black |
| Diameter - Inside, Expanded [diameter] | 31.75 mm |
| Diameter - Inside, Expanded [diameter] | 1.25 in |
| Diameter - Inside, Non-Expanded [diameter] | 19.05 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.75 in |
| Environment Protection | UV Resistant |
| Features | Clean Cut, Chemical Resistant |
| Length [x] | 22.86 m |
| Length [x] | 75 ft |
| Liquid Protection | Gasoline Resistant, Moisture Resistant |
| Material | Polyamide (PA66), Nylon 6/6, Halogen Free |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -45 °C |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness [custom] | 0.03 in |
| Wall Thickness [custom] | 0.76 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 48.88 | |
Description
General part information
NYN0 Series
Sleeve X 75.00' (22.86m) Black
