746-046-525-606
ActiveEDAC Inc.

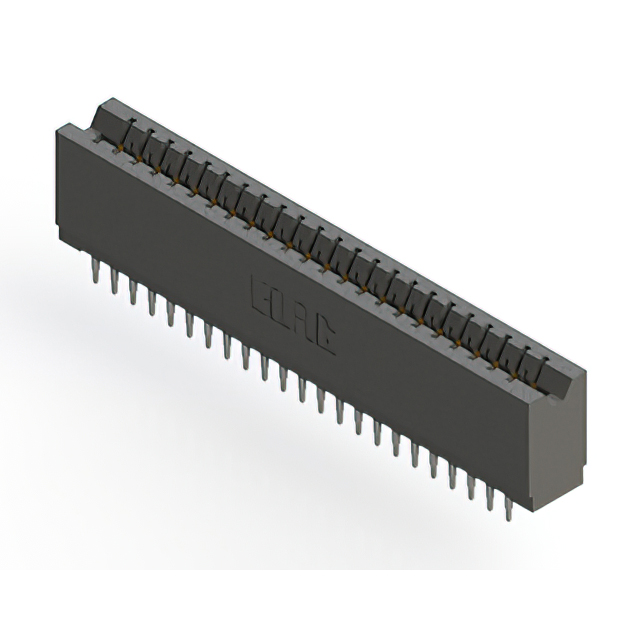

CONN EDGE DUAL FMALE 46POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
746-046-525-606
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 46POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 746-046-525-606 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 46 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Press-Fit |
| Termination Rows | 2 |
746-046 Series
| Part | Contact Material | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Gender | Termination Rows | Material - Insulation | Termination | Read Out | Card Type | Contact Type | Number of Positions | Pitch [x] | Pitch [x] | Mounting Type | Color | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 2 | -40 °C | 105 ░C | 23 | Female | 2 | Polyester Thermoplastic | Press-Fit | Dual | Non Specified - Dual Edge | Cantilever | 46 | 0.125 in | 3.18 mm | Through Hole | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.76 Ám | 30 Áin |
EDAC Inc. | Copper Alloy | 2 | -40 °C | 105 ░C | 23 | Female | 2 | Polyester Thermoplastic | Press-Fit Wire Wrap | Dual | Non Specified - Dual Edge | Cantilever | 46 | 0.125 in | 3.18 mm | Through Hole | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.76 Ám | 30 Áin |
EDAC Inc. | Copper Alloy | 2 | -40 °C | 105 ░C | 23 | Female | 2 | Polyester Thermoplastic | Press-Fit | Dual | Non Specified - Dual Edge | Cantilever | 46 | 0.125 in | 3.18 mm | Through Hole | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.76 Ám | 30 Áin |
EDAC Inc. | Copper Alloy | 2 | -40 °C | 105 ░C | 23 | Female | 2 | Polyester Thermoplastic | Press-Fit | Dual | Non Specified - Dual Edge | Cantilever | 46 | 0.125 in | 3.18 mm | Through Hole | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.76 Ám | 30 Áin |
EDAC Inc. | Copper Alloy | 2 | -40 °C | 105 ░C | 23 | Female | 2 | Polyester Thermoplastic | Press-Fit | Dual | Non Specified - Dual Edge | Cantilever | 46 | 0.125 in | 3.18 mm | Through Hole | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.76 Ám | 30 Áin |
EDAC Inc. | Copper Alloy | 1 | -40 °C | 105 ░C | 46 | Female | 1 | Polyester Thermoplastic | Press-Fit Wire Wrap | Single | Non Specified - Single Edge | Cantilever | 46 | 0.125 in | 3.18 mm | Through Hole | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.76 Ám | 30 Áin |
EDAC Inc. | Copper Alloy | 1 | -40 °C | 105 ░C | 46 | Female | 1 | Polyester Thermoplastic | Press-Fit | Single | Non Specified - Single Edge | Cantilever | 46 | 0.125 in | 3.18 mm | Through Hole | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.76 Ám | 30 Áin |
EDAC Inc. | Copper Alloy | 2 | -40 °C | 105 ░C | 23 | Female | 2 | Polyester Thermoplastic | Press-Fit | Dual | Non Specified - Dual Edge | Cantilever | 46 | 0.125 in | 3.18 mm | Through Hole | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.76 Ám | 30 Áin |
EDAC Inc. | Copper Alloy | 2 | -40 °C | 105 ░C | 23 | Female | 2 | Polyester Thermoplastic | Press-Fit Wire Wrap | Dual | Non Specified - Dual Edge | Cantilever | 46 | 0.125 in | 3.18 mm | Through Hole | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.76 Ám | 30 Áin |
EDAC Inc. | Copper Alloy | 2 | -40 °C | 105 ░C | 23 | Female | 2 | Polyester Thermoplastic | Press-Fit Wire Wrap | Dual | Non Specified - Dual Edge | Cantilever | 46 | 0.125 in | 3.18 mm | Through Hole | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 8.33 | |
Description
General part information
746-046 Series
46 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
