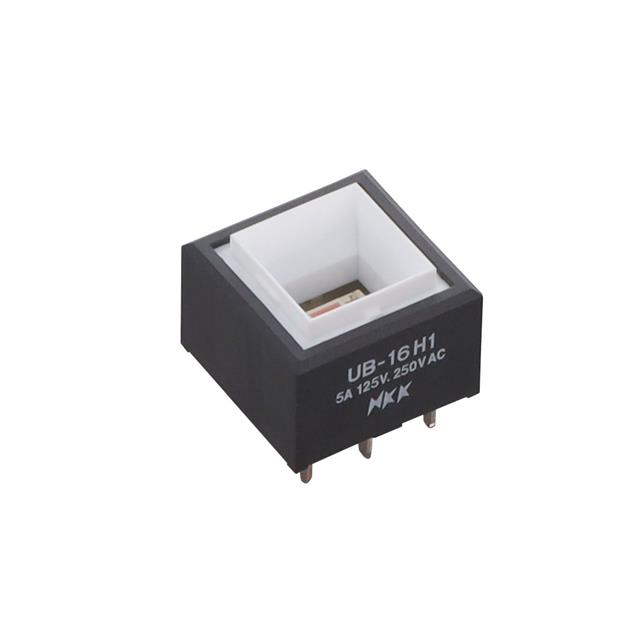

UB16SKW035C

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UB16SKW035C

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB16SKW035C

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Process Sealed
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.85 VDC
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB16SKW Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Termination Style	Features	Mounting Type	Voltage Rating - DC	Current Rating (Amps)	Switch Function	Color - Actuator/Cap	Type	Circuit	Voltage Rating - AC	Mechanical Life	Actuator Type	Electrical Life	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches UB16SKW03N-C	-20 C	70 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Red	Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles
NKK Switches UB16SKW035F-JJ	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Clear	Illuminated Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles	Green LED	2.1 VDC
NKK Switches UB16SKW035C-JJ	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Clear	Illuminated Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles	LED Red	1.85 VDC
NKK Switches UB16SKW035C	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On		Illuminated Standard	SPDT	125 V	200000 Cycles	Plunger for Cap	10000 Cycles	LED Red	1.85 VDC
NKK Switches UB16SKW035D-JB	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Clear	Illuminated Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles	Amber LED	2 VDC
NKK Switches UB16SKW035F-JF	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Clear	Illuminated Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles	Green LED	2.1 VDC
NKK Switches UB16SKW03N-B	-20 C	70 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	White	Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles
NKK Switches UB16SKW035D	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On		Illuminated Standard	SPDT	125 V	200000 Cycles	Plunger for Cap	10000 Cycles	Amber LED	2 VDC
NKK Switches UB16SKW035C-CC	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Red	Illuminated Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles	LED Red	1.85 VDC
NKK Switches UB16SKW035D-JD	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Clear	Illuminated Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles	Amber LED	2 VDC
