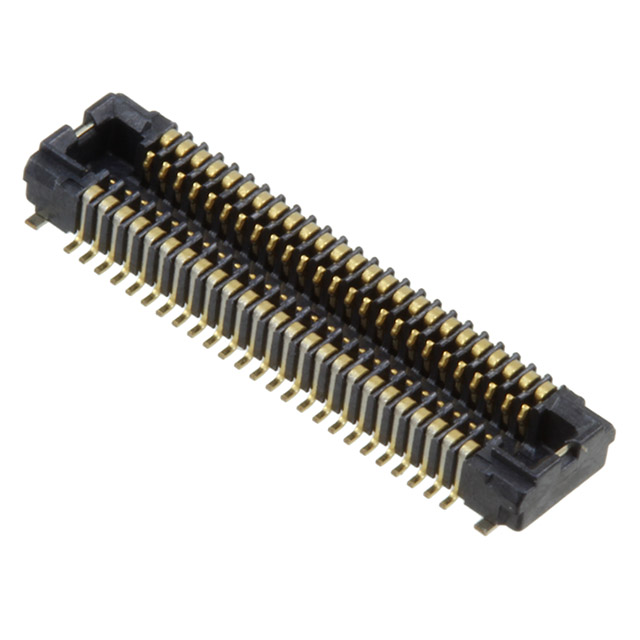

AXT350124

Active

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT350124

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Mounting Type	Number of Rows	Contact Finish	Height Above Board [z]	Height Above Board [z]	Features	Mated Stacking Heights
Panasonic Electric Works AXT350114	0.016 in	0.4 mm	50	Outer Shroud Contacts Socket	Surface Mount	2	Gold	0.057 in	1.45 mm	Board Guide Solder Retention	1.5 mm
Panasonic Electric Works AXT350124	0.016 in	0.4 mm	50	Outer Shroud Contacts Socket	Surface Mount	2	Gold	0.057 in	1.45 mm	Solder Retention	1.5 mm
Panasonic Electric Works AXT3501F4A	0.016 in	0.4 mm	50	Outer Shroud Contacts Socket	Surface Mount	2	Gold	0.057 in	1.45 mm	Shielded Solder Retention	1.5 mm
