10129206-0010011LF

Active

DDR4 TH ULP

Active

DDR4 TH ULP

Description

General part information

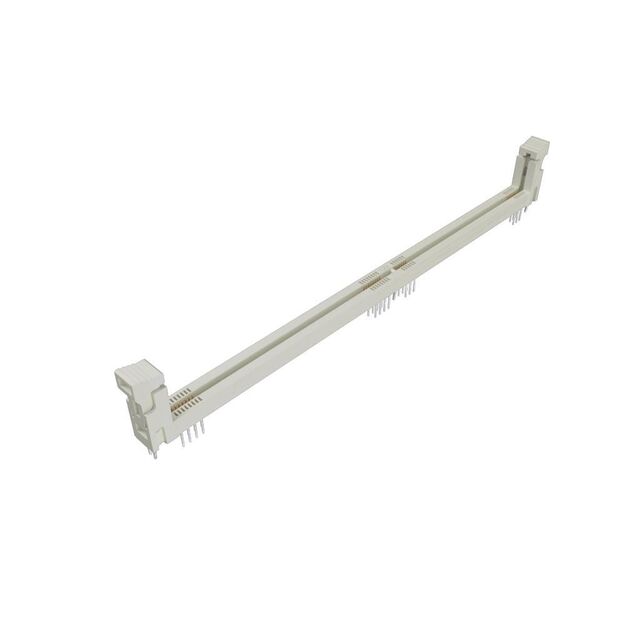

288 Position DIMM DDR4 SDRAM Socket Through Hole

Parameters and characteristics for this part

Part	Memory Type	Standards	Connector Style	Contact Finish Thickness	Mounting Type	Number of Positions	Contact Finish	Mounting Feature	Card Thickness	Color	Features
Amphenol ICC (FCI) 10129206-1001001LF	DDR4 SDRAM	MO-309	DIMM	15 µin	Through Hole	288	Gold	Normal Standard Top	0.055 in	Black	Board Lock Latches
Amphenol ICC (FCI) 10129206-1000003LF	DDR4 SDRAM	MO-309	DIMM	30 µin	Through Hole	288	Gold	Normal Standard Top	0.055 in	Natural	Board Lock Latches
Amphenol ICC (FCI) 10129206-0012013LF	DDR4 SDRAM	MO-309	DIMM	30 µin	Through Hole	288	Gold	Normal Standard Top	0.055 in	Blue	Board Lock Latches
Amphenol ICC (FCI) 10129206-1001101LF	DDR4 SDRAM	MO-309	DIMM	15 µin	Through Hole	288	Gold	Normal Standard Top	0.055 in	Black	Board Lock Latches
Amphenol ICC (FCI) 10129206-0001103LF	DDR4 SDRAM	MO-309	DIMM	30 µin	Through Hole	288	Gold	Normal Standard Top	0.055 in	Black	Board Lock Latches
Amphenol ICC (FCI) 10129206-0011113LF	DDR4 SDRAM	MO-309	DIMM	30 µin	Through Hole	288	Gold	Normal Standard Top	0.055 in	Black	Board Lock Latches
Amphenol ICC (FCI) 10129206-0001101LF	DDR4 SDRAM	MO-309	DIMM	15 µin	Through Hole	288	Gold	Normal Standard Top	0.055 in	Black	Board Lock Latches
Amphenol ICC (FCI) 10129206-0010011LF	DDR4 SDRAM	MO-309	DIMM	15 µin	Through Hole	288	Gold	Normal Standard Top	0.055 in	Natural	Board Lock Latches
Amphenol ICC (FCI) 10129206-1201113LF	DDR4 SDRAM	MO-309	DIMM	30 µin	Through Hole	288	Gold	Normal Standard Top	0.055 in	Black	Board Lock Latches
Amphenol ICC (FCI) 10129206-0021111LF	DDR4 SDRAM	MO-309	DIMM	15 µin	Through Hole	288	Gold	Normal Standard Top	0.055 in	Black	Board Lock Latches
