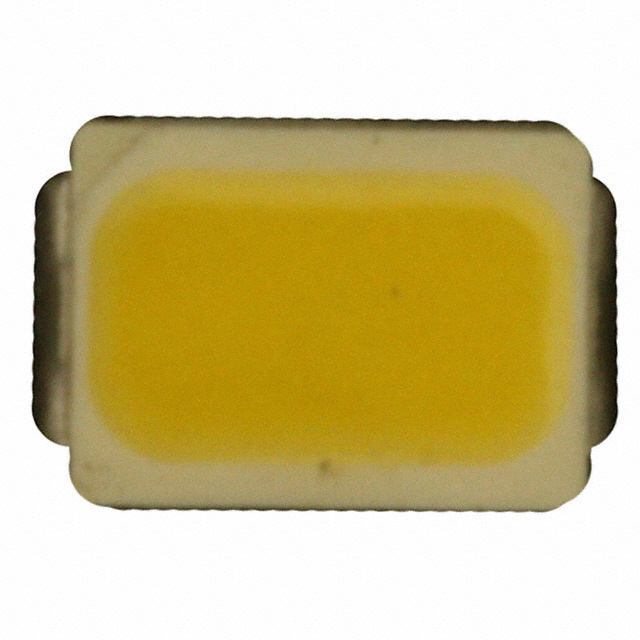

CLM3C-MKW-CWAXB233

Active

Cree LED

LED WARM WHITE DIFF 2PLCC SMD

Search across all available documentation for this part.

Active

Cree LED

LED WARM WHITE DIFF 2PLCC SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED COOL WHITE DIFF 2PLCC SMD

Part	Height (Max) [Max] [z]	Lens Style	Supplier Device Package	Wavelength - Dominant	Current - Test	Lens Color	Package / Case	Voltage - Forward (Vf) (Typ)	Configuration	Color	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Millicandela Rating	Mounting Type
Cree LED CLM3C-WKW-CWBYA453	1.4 mm	Rectangle with Flat Top	2-PLCC	5500 K	20 mA	Yellow	2-SMD, J-Lead	3.2 V	Standard	Cool, White	2 mm	2.7 mm	Diffused	2475 mcd	Surface Mount
Cree LED CLM3C-MKW-CWBXB233	1.4 mm	Rectangle with Flat Top	2-PLCC	3200 K	20 mA	Yellow	2-SMD, J-Lead	3.2 V	Standard	Warm, White	2 mm	2.7 mm	Diffused	2100 mcd	Surface Mount
Cree LED CLM3C-MKW-CWAXB233	1.4 mm	Rectangle with Flat Top	2-PLCC	3200 K	20 mA	Yellow	2-SMD, J-Lead	3.2 V	Standard	Warm, White	2 mm	2.7 mm	Diffused	1960 mcd	Surface Mount
Cree LED CLM3C-RKW-CUBWAAA3	1.4 mm	Rectangle with Flat Top	2-PLCC	624 nm	20 mA	Colorless	2-SMD, J-Lead	2.1 V	Standard	Red	2 mm	2.7 mm	Clear	980 mcd	Surface Mount
Cree LED CLM3C-MKW-CWAXB133	1.4 mm	Rectangle with Flat Top	2-PLCC	3200 K	20 mA	Yellow	2-SMD, J-Lead	3.2 V	Standard	Warm, White	2 mm	2.7 mm	Diffused	1960 mcd	Surface Mount
Cree LED CLM3C-RKW-CUBVBAA3	1.4 mm	Rectangle with Flat Top	2-PLCC	624 nm	20 mA	White	2-SMD, J-Lead	2.1 V	Standard	Red	2 mm	2.7 mm	Diffused	740 mcd	Surface Mount
Cree LED CLM3C-AKW-CUAVB253	1.4 mm	Rectangle with Flat Top	2-PLCC	591 nm	20 mA	White	2-SMD, J-Lead	2.1 V	Standard	Amber	2 mm	2.7 mm	Diffused	700 mcd	Surface Mount
Cree LED CLM3C-WKW-CXAYA453	1.4 mm	Rectangle with Flat Top	2-PLCC	5500 K	20 mA	Yellow	2-SMD, J-Lead	3.2 V	Standard	Cool, White	2 mm	2.7 mm	Diffused	2675 mcd	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White, Warm 3200K LED Indication - Discrete 3.2V 2-SMD, J-Lead
