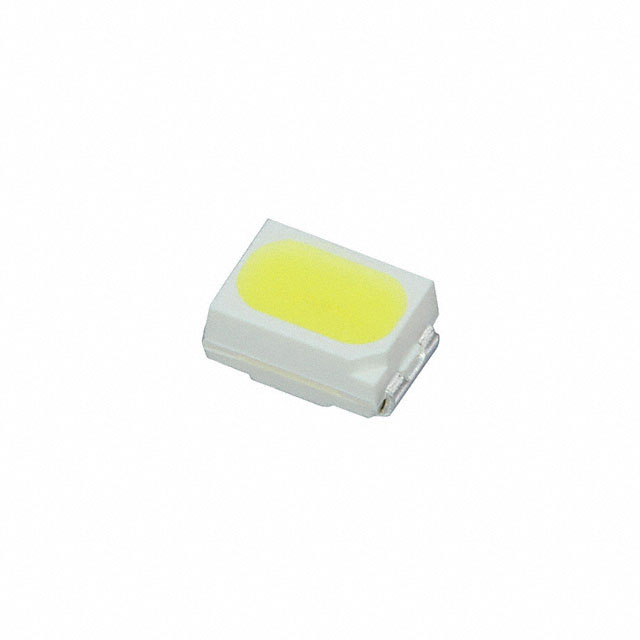

CLM3C-WKW-CXAYA453

Active

Cree LED

1800-3550 MCD, CHROM W4,W5, TAPE & REEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLM3C-WKW-CXAYA453

Active

Cree LED

1800-3550 MCD, CHROM W4,W5, TAPE & REEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLM3C-WKW-CXAYA453	CLM3C Series

Color	Cool, White	Cool, White, Warm, Red, Amber
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	1.4 mm	1.4 mm
Lens Color	Yellow	Yellow, Colorless, White
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Diffused	Diffused, Clear
Millicandela Rating	2675 mcd	700 - 2675 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	2-SMD, J-Lead	2-SMD, J-Lead
Size / Dimension [x]	2.7 mm	2.7 mm
Size / Dimension [y]	2 mm	2 mm
Supplier Device Package	2-PLCC	2-PLCC
Voltage - Forward (Vf) (Typ)	3.2 V	2.1 - 3.2 V
Wavelength - Dominant	5500 K	591 - 5500 K

CLM3C Series

LED COOL WHITE DIFF 2PLCC SMD

Part	Height (Max) [Max] [z]	Lens Style	Supplier Device Package	Wavelength - Dominant	Current - Test	Lens Color	Package / Case	Voltage - Forward (Vf) (Typ)	Configuration	Color	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Millicandela Rating	Mounting Type
Cree LED CLM3C-WKW-CWBYA453	1.4 mm	Rectangle with Flat Top	2-PLCC	5500 K	20 mA	Yellow	2-SMD, J-Lead	3.2 V	Standard	Cool, White	2 mm	2.7 mm	Diffused	2475 mcd	Surface Mount
Cree LED CLM3C-MKW-CWBXB233	1.4 mm	Rectangle with Flat Top	2-PLCC	3200 K	20 mA	Yellow	2-SMD, J-Lead	3.2 V	Standard	Warm, White	2 mm	2.7 mm	Diffused	2100 mcd	Surface Mount
Cree LED CLM3C-MKW-CWAXB233	1.4 mm	Rectangle with Flat Top	2-PLCC	3200 K	20 mA	Yellow	2-SMD, J-Lead	3.2 V	Standard	Warm, White	2 mm	2.7 mm	Diffused	1960 mcd	Surface Mount
Cree LED CLM3C-RKW-CUBWAAA3	1.4 mm	Rectangle with Flat Top	2-PLCC	624 nm	20 mA	Colorless	2-SMD, J-Lead	2.1 V	Standard	Red	2 mm	2.7 mm	Clear	980 mcd	Surface Mount
Cree LED CLM3C-MKW-CWAXB133	1.4 mm	Rectangle with Flat Top	2-PLCC	3200 K	20 mA	Yellow	2-SMD, J-Lead	3.2 V	Standard	Warm, White	2 mm	2.7 mm	Diffused	1960 mcd	Surface Mount
Cree LED CLM3C-RKW-CUBVBAA3	1.4 mm	Rectangle with Flat Top	2-PLCC	624 nm	20 mA	White	2-SMD, J-Lead	2.1 V	Standard	Red	2 mm	2.7 mm	Diffused	740 mcd	Surface Mount
Cree LED CLM3C-AKW-CUAVB253	1.4 mm	Rectangle with Flat Top	2-PLCC	591 nm	20 mA	White	2-SMD, J-Lead	2.1 V	Standard	Amber	2 mm	2.7 mm	Diffused	700 mcd	Surface Mount
Cree LED CLM3C-WKW-CXAYA453	1.4 mm	Rectangle with Flat Top	2-PLCC	5500 K	20 mA	Yellow	2-SMD, J-Lead	3.2 V	Standard	Cool, White	2 mm	2.7 mm	Diffused	2675 mcd	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.29
		10	$ 0.27
		100	$ 0.25
		1000	$ 0.22
	Digi-Reel®	1	$ 0.29
		10	$ 0.27
		100	$ 0.25
		1000	$ 0.22
	Tape & Reel (TR)	3000	$ 0.22
Newark	Each (Supplied on Full Reel)	3000	$ 0.24
		6000	$ 0.22
		12000	$ 0.21
		18000	$ 0.20
		30000	$ 0.19

Description

General part information

CLM3C Series

SMD LEDs is packaged in the industry standard package. These LEDs have high reliability performance and are designed to work under a wide range of environmental conditions. This high reliability feature makes them ideally suited to be used under illuminatSize (mm):2.7 x 2.0 • Color Temperatures(K): Cool White : Min . (4600) / Typical (5500) Warm White : Min . (2500) / Typical (3200) • Luminous Intensity (mcd) CLM3C-WKW:(1400 - 3550) CLM3C-MKW:(1120 - 2800) • CRI Typical CRI for Cool White is 72 Typical CR
