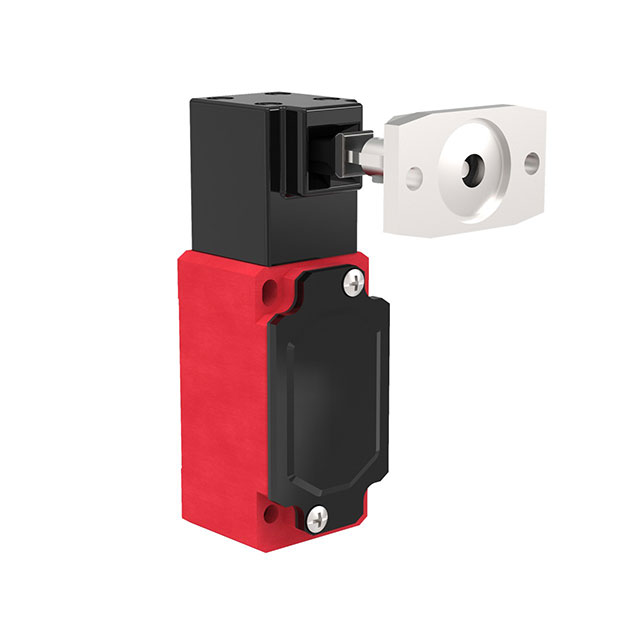

SI-LM40MKHFF

Obsolete

BANNER ENGINEERING

LIMIT SWITCH: FLEXIBLE IN-LINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SI-LM40MKHFF

Obsolete

BANNER ENGINEERING

LIMIT SWITCH: FLEXIBLE IN-LINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI-LM40MKHFF

Actuator Type	Panel Disconnect
Approval Agency	UL, CSA, CE
Circuit	3PST-2NC/1NO
Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Termination Style	Screw Terminal
Type	Non-Locking
Voltage Rating	24 VDC, 110 VAC

SI-LM40 Series

Part	Voltage Rating	Ingress Protection	Approval Agency	Actuator Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Termination Style	Switch Function	Mounting Type	Voltage Rating - AC	Current Rating (Amps)	Mechanical Life	Holding Force
BANNER ENGINEERING SI-LM40MKHD	24 VDC 110 VAC	IP65 - Dust Tight Water Resistant	CE CSA UL	Panel Disconnect	Non-Locking	-30 ░C	80 C	DPST-NO/NC	Screw Terminal
BANNER ENGINEERING SI-LM40KHF	24 VDC 110 VAC	IP65 - Dust Tight Water Resistant	CE CSA UL	Panel Disconnect	Non-Locking	-30 ░C	80 C	3PST-2NC/1NO	Screw Terminal
BANNER ENGINEERING SI-LM40RC18F		IP65 - Dust Tight Water Resistant		Roller Plunger		-30 ░C	80 C	3PST-2NC/1NO	Screw Terminal	Off-On On-Off	Chassis Mount	120 V	3 A	1000000 Cycles
BANNER ENGINEERING SI-LM40LA18E		IP65 - Dust Tight Water Resistant		Roller Side Rotary		-30 ░C	80 C	DPST-NC	Screw Terminal	On-Off	Chassis Mount	120 V	6 A	1000000 Cycles
BANNER ENGINEERING SI-LM40MKHFF	24 VDC 110 VAC	IP65 - Dust Tight Water Resistant	CE CSA UL	Panel Disconnect	Non-Locking	-30 ░C	80 C	3PST-2NC/1NO	Screw Terminal
BANNER ENGINEERING SI-LM40LA18F		IP65 - Dust Tight Water Resistant		Roller Side Rotary		-30 ░C	80 C	3PST-2NC/1NO	Screw Terminal	Off-On On-Off	Chassis Mount	120 V	3 A	1000000 Cycles
BANNER ENGINEERING SI-LM40KVD	24 VDC 110 VAC	IP65 - Dust Tight Water Resistant	CE CSA UL	Panel Disconnect	Non-Locking	-30 ░C	80 C	DPST-NO/NC	Screw Terminal						2 kgf
BANNER ENGINEERING SI-LM40LA18D		IP65 - Dust Tight Water Resistant		Roller Side Rotary		-30 ░C	80 C	DPST-NO/NC	Screw Terminal	Off-Mom On-Mom	Chassis Mount	120 V	6 A	1000000 Cycles
BANNER ENGINEERING SI-LM40L20D		IP65 - Dust Tight Water Resistant		Roller Side Rotary		-30 ░C	80 C	DPST-NO/NC	Screw Terminal	Off-On On-Off	Chassis Mount	120 V	6 A	10000000 Cycles
BANNER ENGINEERING SI-LM40MKVD	24 VDC 110 VAC	IP65 - Dust Tight Water Resistant	CE CSA UL	Panel Disconnect	Non-Locking	-30 ░C	80 C	DPST-NO/NC	Screw Terminal						2 kgf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 232.00

Description

General part information

SI-LM40 Series

LIMIT SWITCH: FLEXIBLE IN-LINE
