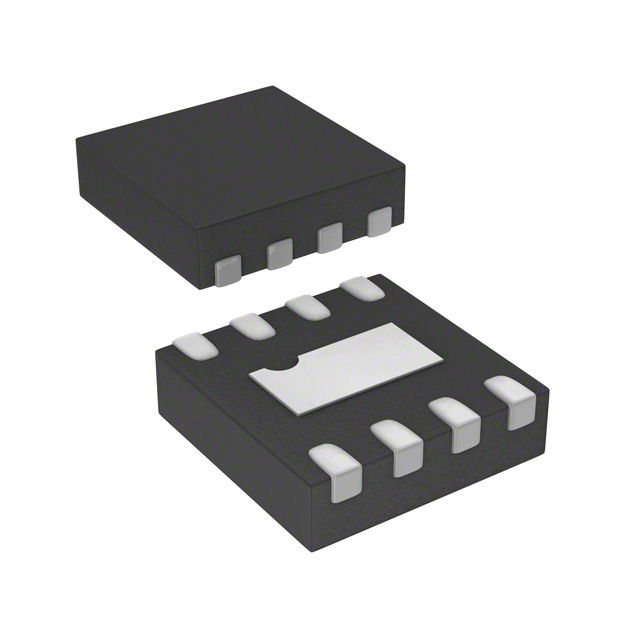

MAAL-011129-TR1000
ActiveMACOM Technology Solutions
IC RF AMP ISM 18GHZ-31.5GHZ 8DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAAL-011129-TR1000
ActiveMACOM Technology Solutions
IC RF AMP ISM 18GHZ-31.5GHZ 8DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAAL-011129-TR1000 |
|---|---|
| Current - Supply | 50 mA |
| Gain | 23 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 2.5 dB |
| P1dB | 16 dBm |
| Package / Case | 8-VFDFN Exposed Pad |
| RF Type | ISM, VSAT |
| Supplier Device Package | 8-PDFN (2x2) |
| Test Frequency | 24 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 61.57 | |
| 10 | $ 49.35 | |||
| 25 | $ 45.81 | |||
| 100 | $ 41.55 | |||
| 250 | $ 39.32 | |||
| Digi-Reel® | 1 | $ 61.57 | ||
| 10 | $ 49.35 | |||
| 25 | $ 45.81 | |||
| 100 | $ 41.55 | |||
| 250 | $ 39.32 | |||
| Tape & Reel (TR) | 1000 | $ 36.66 | ||
Description
General part information
MAAL-011129 Series
RF Amplifier IC ISM, VSAT 18GHz ~ 31.5GHz 8-PDFN (2x2)
