EDAC Inc.

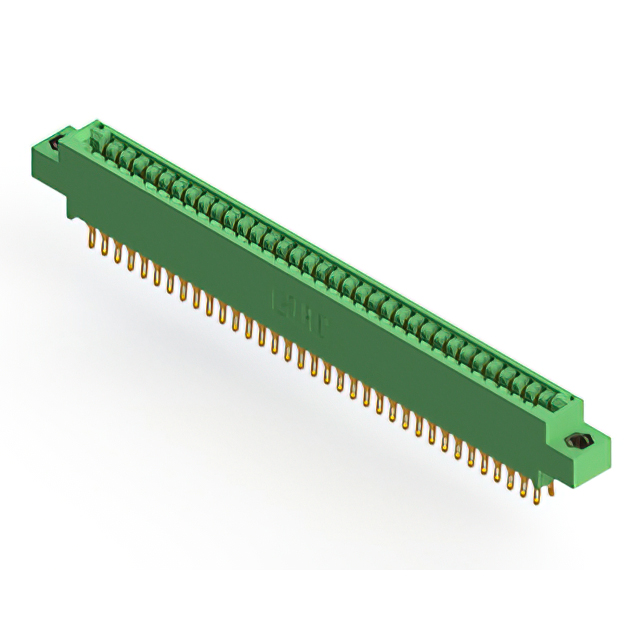

CONN EDGE DUAL FMALE 70POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-070-555-807

Active

EDAC Inc.

CONN EDGE DUAL FMALE 70POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-070-555-807

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	70
Number of Positions/Bay/Row [custom]	35
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

846-070 Series

...

Part	Contact Finish	Gender	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Color	Read Out	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Number of Positions	Material - Insulation	Termination Rows	Card Type	Number of Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]	Termination	Pitch [x]	Pitch [x]	Features	Flange Feature	Flange Feature
EDAC Inc. 846-070-541-212	Gold	Female	Copper Alloy	125 °C	-40 °C	10 Áin	0.25 Ám	Green	Dual	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	70	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	2	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	35	Wire Wrap	0.125 in	3.18 mm
EDAC Inc. 846-070-560-208	Gold	Female	Copper Alloy	125 °C	-40 °C	10 Áin	0.25 Ám	Green	Dual	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	70	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	2		4-40 Flush Mount Threaded Insert Top Opening		35	Solder	0.125 in	3.18 mm	Card Extender
EDAC Inc. 846-070-522-212	Gold	Female	Copper Alloy	125 °C	-40 °C	10 Áin	0.25 Ám	Green	Dual	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	70	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	2	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	35	Solder	0.125 in	3.18 mm
EDAC Inc. 846-070-522-201	Gold	Female	Copper Alloy	125 °C	-40 °C	10 Áin	0.25 Ám	Green	Dual	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	70	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	2				35	Solder	0.125 in	3.18 mm
EDAC Inc. 846-070-541-812	Gold	Female	Copper Alloy	125 °C	-40 °C	10 Áin	0.25 Ám	Green	Dual	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	70	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	2		Side Mount Opening Unthreaded		35	Wire Wrap	0.125 in	3.18 mm		3.25 mm	0.128 in
EDAC Inc. 846-070-540-201	Gold	Female	Copper Alloy	125 °C	-40 °C	10 Áin	0.25 Ám	Green	Dual	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	70	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	2				35	Wire Wrap	0.125 in	3.18 mm
EDAC Inc. 846-070-521-204	Gold	Female	Copper Alloy	125 °C	-40 °C	10 Áin	0.25 Ám	Green	Dual	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	70	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	2	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	35	Solder	0.125 in	3.18 mm
EDAC Inc. 846-070-541-207	Gold	Female	Copper Alloy	125 °C	-40 °C	10 Áin	0.25 Ám	Green	Dual	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	70	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	2		Flush Mount M3 Threaded Insert Top Opening		35	Wire Wrap	0.125 in	3.18 mm
EDAC Inc. 846-070-555-807	Gold	Female	Copper Alloy	125 °C	-40 °C	10 Áin	0.25 Ám	Green	Dual	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	70	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	2		M3 Threaded Insert Top Mount Opening		35	Solder Eyelet(s)	0.125 in	3.18 mm	Card Extender
EDAC Inc. 846-070-520-208	Gold	Female	Copper Alloy	125 °C	-40 °C	10 Áin	0.25 Ám	Green	Dual	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	70	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	2		4-40 Flush Mount Threaded Insert Top Opening		35	Solder	0.125 in	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 92.85
Newark	Each	1	$ 107.18
		100	$ 73.23
		250	$ 65.18
		500	$ 58.64
		1000	$ 49.25

Description

General part information

846-070 Series

70 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
