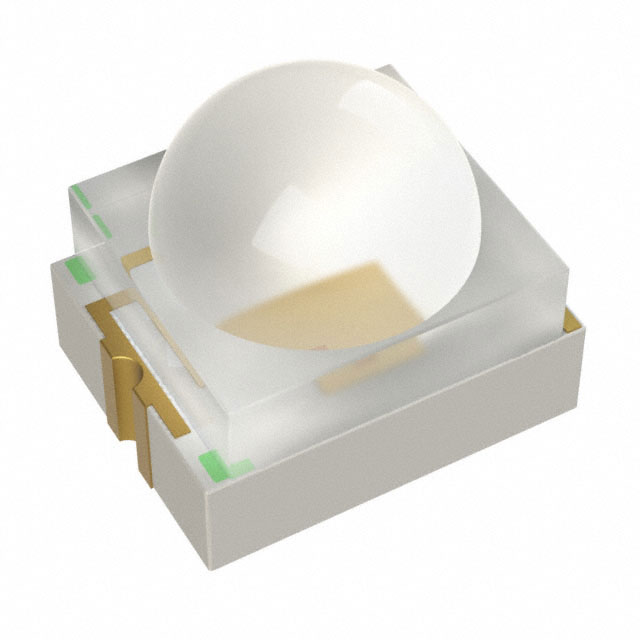

XZZYF45W-2HTA
ActiveSunLED
LED YELLOW CLEAR CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZZYF45W-2HTA
ActiveSunLED
LED YELLOW CLEAR CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZZYF45W-2HTA |
|---|---|
| Color | Yellow |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 3.4 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.3 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 70 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 589 nm |
| Wavelength - Peak | 592 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 10 | $ 0.59 | |||
| 100 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.90 | ||
| 10 | $ 0.59 | |||
| 100 | $ 0.38 | |||
| Tape & Reel (TR) | 500 | $ 0.25 | ||
Description
General part information
XZZYF45 Series
Yellow 589nm LED Indication - Discrete 2.2V 1411 (3528 Metric)
