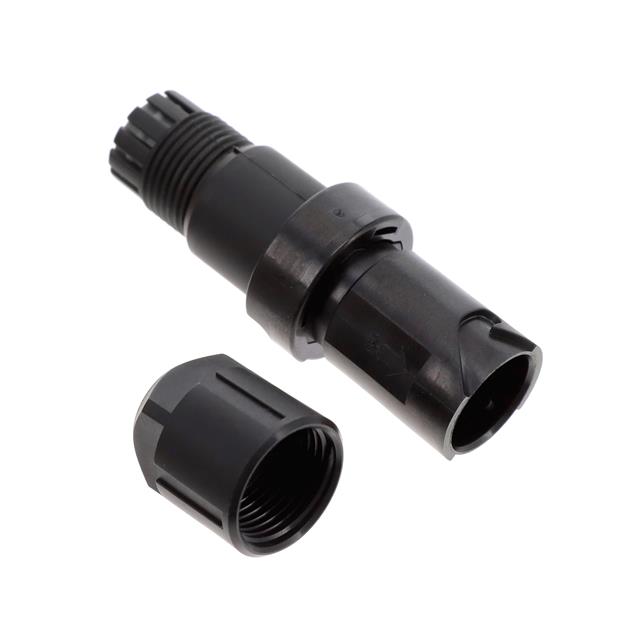

JN1HS10PL2

Active

JAE Electronics

CONN RCPT HSG MALE 10POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet JN1,JN2 Series Datasheet

JN1HS10PL2

Active

JAE Electronics

CONN RCPT HSG MALE 10POS INLINE

Deep-Dive with AI

DocumentsDatasheet JN1,JN2 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JN1HS10PL2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	22
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 C
Orientation	N
Shell Material	Synthetic Resin
Shell Size - Insert	S
Shielding	Unshielded
Type	For Male Pins

JN1HS10P Series

Part	Housing Color	Insert Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Features	Type	Shell Size - Insert	Shell Material	Orientation	Contact Size	Note	Fastening Type	Contact Shape	Mounting Type	Contact Type	Number of Positions	Connector Type	Backshell Material, Plating	Contact Material	Termination	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating (Amps)	Primary Material
JAE Electronics JN1HS10PL3S	Black	Synthetic Resin	Unshielded	-20 C	125 °C	IP67 - Dust Tight Waterproof	Backshell	For Male Pins	S	Synthetic Resin	N	22	Contacts Not Included	Push-Twist	Circular	Free Hanging (In-Line)	Crimp	10	Receptacle Housing
JAE Electronics JN1HS10PLKS3	Black	Synthetic Resin	Unshielded	-20 C	125 °C	IP67 - Dust Tight Waterproof	Backshell	For Male Pins	S	Synthetic Resin	N	22	Contacts Not Included	Push-Twist	Circular	Free Hanging (In-Line)	Crimp	10	Receptacle Housing
JAE Electronics JN1HS10PL2	Black	Synthetic Resin	Unshielded	-20 C	125 °C	IP67 - Dust Tight Waterproof	Backshell	For Male Pins	S	Synthetic Resin	N	22	Contacts Not Included	Push-Twist	Circular	Free Hanging (In-Line)	Crimp	10	Receptacle Housing
JAE Electronics JN1HS10PLKS2				-20 C	125 °C	IP67 - Dust Tight Waterproof	Backshell		S	Synthetic Resin	N			Push-Twist		Free Hanging (In-Line)		10	Male Pins Receptacle	Synthetic Resin	Copper Alloy	Crimp	Black	0.099 µm	3.9 µin	Gold	3 A	Plastic
JAE Electronics JN1HS10PL1	Black	Synthetic Resin	Unshielded	-20 C	125 °C	IP67 - Dust Tight Waterproof	Backshell	For Male Pins	S	Synthetic Resin	N	22	Contacts Not Included	Push-Twist	Circular	Free Hanging (In-Line)	Crimp	10	Receptacle Housing

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 18.59
		10	$ 14.31
		25	$ 12.95
		40	$ 12.31
		80	$ 11.45
		230	$ 10.29
		440	$ 9.66
		945	$ 8.99

Description

General part information

JN1HS10P Series

10 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
