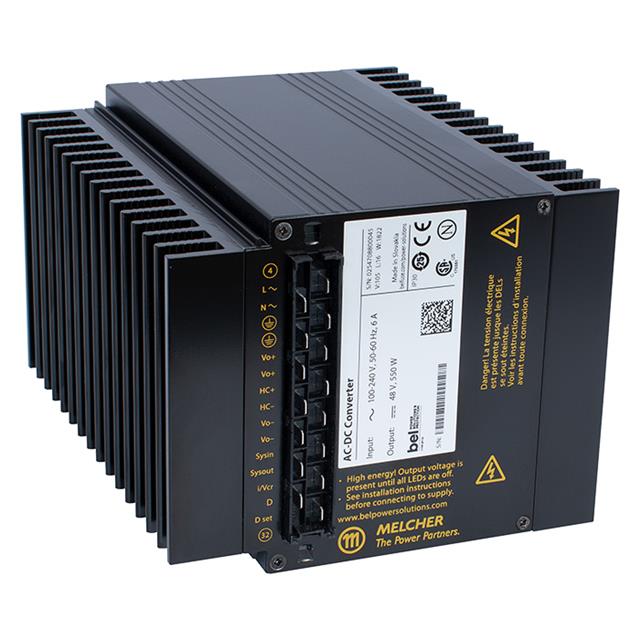

LT1702-7G

Active

Bel Power Solutions

AC/DC CONVERTER 48V 500W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 48V 500W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LT1702-7G	LT1702 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cCSAus, CE	cCSAus, CE
Current - Output 1	11 A	11 A
Efficiency	92.5 %	92 - 92.5 %
Features	Universal Input, Hot Swappable, Adjustable Output, Load Sharing	Universal Input, Hot Swappable, Adjustable Output, Load Sharing
Minimum Load Required	-	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	500 W	500 W
Size / Dimension [x]	168 mm	168 mm
Size / Dimension [x]	6.6 "	6.6 "
Size / Dimension [y]	141 mm	141 mm
Size / Dimension [y]	5.6 "	5.6 "
Size / Dimension [z]	111 mm	111 mm
Size / Dimension [z]	4.4 in	4.4 in
Type	Conformal Coated, Enclosed	Conformal Coated, Enclosed
Voltage - Input [Max]	255 VAC	255 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Isolation	2.8 kV	2.8 kV
Voltage - Output 1	48 V	48 V

AC/DC CONVERTER 48V 500W

Part	Minimum Load Required	Power (Watts)	Type	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Number of Outputs	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Approval Agency	Voltage - Isolation	Current - Output 1	Voltage - Output 1
Bel Power Solutions LT1702-7		500 W	Conformal Coated, Enclosed	92 %	168 mm	111 mm	6.6 "	141 mm	5.6 "	4.4 in	85 VAC	255 VAC	ITE (Commercial)	1	Adjustable Output, Hot Swappable, Load Sharing, Universal Input	-25 °C	71 °C	Chassis Mount	cCSAus, CE	2.8 kV	11 A	48 V
Bel Power Solutions LT1702-7G		500 W	Conformal Coated, Enclosed	92.5 %	168 mm	111 mm	6.6 "	141 mm	5.6 "	4.4 in	85 VAC	255 VAC	ITE (Commercial)	1	Adjustable Output, Hot Swappable, Load Sharing, Universal Input	-25 °C	71 °C	Chassis Mount	cCSAus, CE	2.8 kV	11 A	48 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2252.29

General part information

Enclosed, Conformal Coated AC DC Converters 1 Output 48V 85 ~ 255 VAC Input

Technical documentation and resources

No documents available
