92-343.300
ActiveEAO
CONFIG SW BODY PUSHBUTTON ILLUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
92-343.300
ActiveEAO
CONFIG SW BODY PUSHBUTTON ILLUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 92-343.300 | 92-343 Series |
|---|---|---|
| - | - | |
| (Select First, Then Apply Filters) Compatible Series | EAO, 92 | EAO, 92 |
| Actuator Type | Pushbutton, Square | Pushbutton, Square |
| Illumination | Illuminated - Orange | Illuminated - Yellow, Illuminated - Green, Illuminated - Orange |
| Panel Cutout Dimensions | 16.2 mm | 16.2 mm |
| Requires | Illumination Source, Contact Block(s) | Illumination Source, Contact Block(s) |
| Type | Momentary | Momentary |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.77 | |
| 10 | $ 8.80 | |||
| 25 | $ 8.43 | |||
| 50 | $ 8.02 | |||
| 100 | $ 7.70 | |||
| 250 | $ 7.24 | |||
| 500 | $ 6.68 | |||
| 1000 | $ 6.45 | |||
92-343 Series
CONFIG SW BODY PUSHBUTTON ILLUM
| Part | (Select First, Then Apply Filters) Compatible Series | Type | Requires | Panel Cutout Dimensions | Actuator Type | Illumination |
|---|---|---|---|---|---|---|
EAO 92-343.200 | 92, EAO | Momentary | Contact Block(s), Illumination Source | 16.2 mm | Pushbutton, Square | |
EAO 92-343.400 | 92, EAO | Momentary | Contact Block(s), Illumination Source | 16.2 mm | Pushbutton, Square | Illuminated - Yellow |
EAO 92-343.500 | 92, EAO | Momentary | Contact Block(s), Illumination Source | 16.2 mm | Pushbutton, Square | Illuminated - Green |
EAO 92-343.400 | ||||||
EAO 92-343.300 | 92, EAO | Momentary | Contact Block(s), Illumination Source | 16.2 mm | Pushbutton, Square | Illuminated - Orange |
Description
General part information
92-343 Series

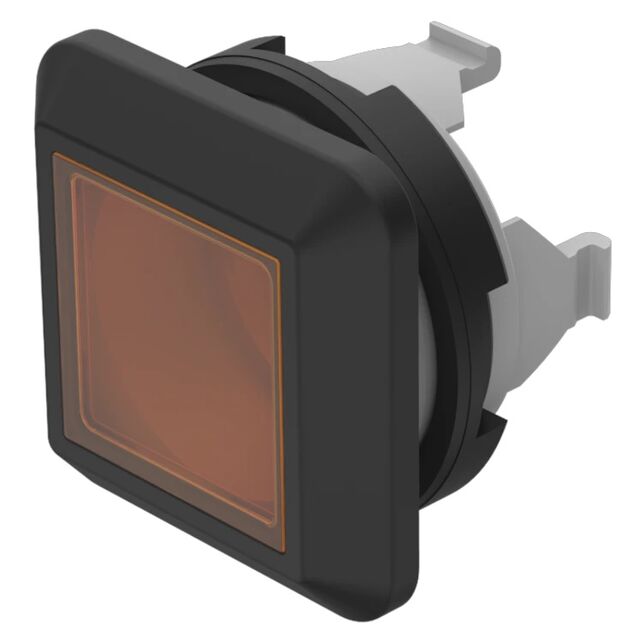

Configurable Switch Body Pushbutton, Square Illuminated - Orange
