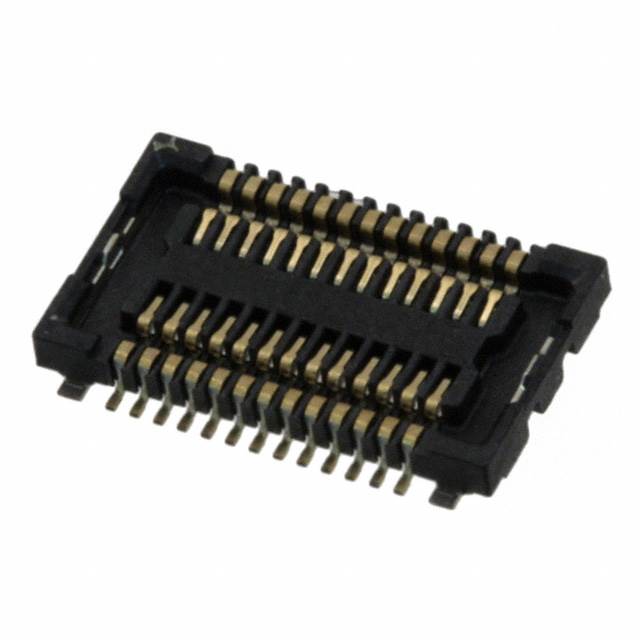

AXK7L26217G

Active

Panasonic Electric Works

CONN SOCKET 26POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 26POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK7L26217G

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.86 mm
Height Above Board	0.034 "
Mated Stacking Heights	0.9 mm
Mounting Type	Surface Mount
Number of Positions	26
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Positions	Contact Finish	Connector Type	Features	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type
Panasonic Electric Works AXK7L26217G	0.86 mm	0.034 "	0.9 mm	26	Gold	Socket Center Strip Contacts	Solder Retention	0.016 in	0.4 mm	2	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 1.72

General part information

26 Position Connector Socket, Center Strip Contacts Surface Mount Gold
