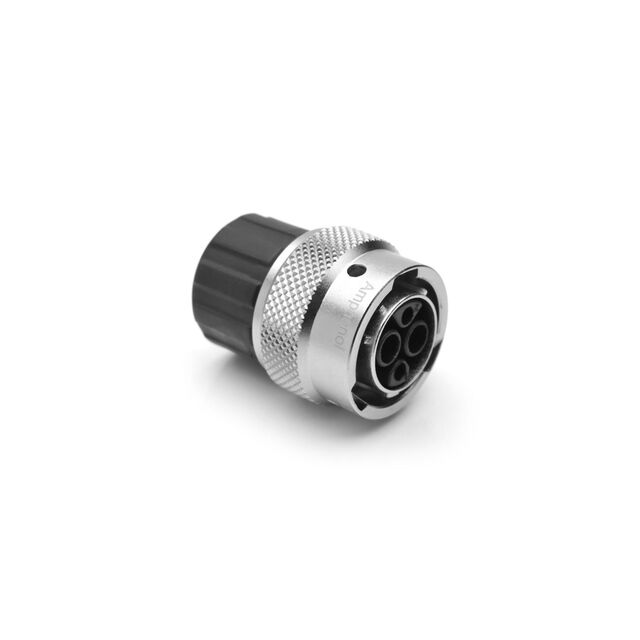

RT06122SNHEC03

Active

Amphenol Sine Systems Corp

PLUG, 4 (2+2) POSITION, FEMALE,

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

PLUG, 4 (2+2) POSITION, FEMALE,

Technical Specifications

Parameters and characteristics for this part

Specification	RT06122SNHEC03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Size	2.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	12-2
Shielding	Shielded
Type	For Female Sockets

Part	Number of Positions	Shell Finish	Contact Shape	Insert Material	Features	Connector Type	Housing Color	Contact Type	Mounting Type	Note	Orientation	Primary Material	Fastening Type	Material Flammability Rating	Contact Size	Contact Size	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Type	Shell Material	Shell Size - Insert	Ingress Protection
Amphenol Sine Systems Corp RT06122SNHEC03	2	Nickel	Circular	Thermoplastic	Coupling Nut	Plug Housing	Silver	Crimp	Free Hanging (In-Line)	Contacts Not Included	N	Metal	Bayonet Lock	UL94 V-0	20	2.5 mm	Shielded	125 °C	-40 °C	For Female Sockets	Zinc Alloy	12-2	IP67 - Dust Tight Waterproof
Amphenol Sine Systems Corp RT06122PNHEC03
Amphenol Sine Systems Corp RT06122SNH03

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
