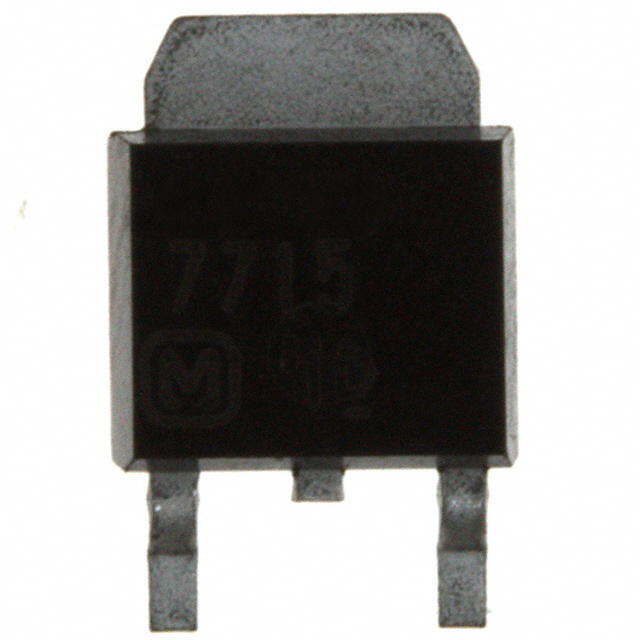

AN7715SP

Obsolete

Panasonic Industrial Automation Sales

IC REG LINEAR 15V 1.2A SP3SUA

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

IC REG LINEAR 15V 1.2A SP3SUA

Technical Specifications

Parameters and characteristics for this part

Specification	AN7715SP

Current - Output	1.2 A
Current - Quiescent (Iq)	5 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	25 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Protection Features	Over Temperature, Over Current, Short Circuit
PSRR	60 dB
Supplier Device Package	SP-3SUA
Voltage - Input (Max) [Max]	26.5 V
Voltage - Output (Min/Fixed)	15 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Supplier Device Package	Output Configuration	Number of Regulators	Voltage - Input (Max) [Max]	PSRR	Output Type	Current - Output	Protection Features	Package / Case	Mounting Type
Panasonic Industrial Automation Sales AN7715SP	125 °C	25 °C	15 V	5 mA	SP-3SUA	Positive	1	26.5 V	60 dB	1.81 mOhm	1.2 A	Over Current Over Temperature Short Circuit	DPAK (2 Leads + Tab) SC-63 TO-252-3	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 1.2A SP-3SUA
