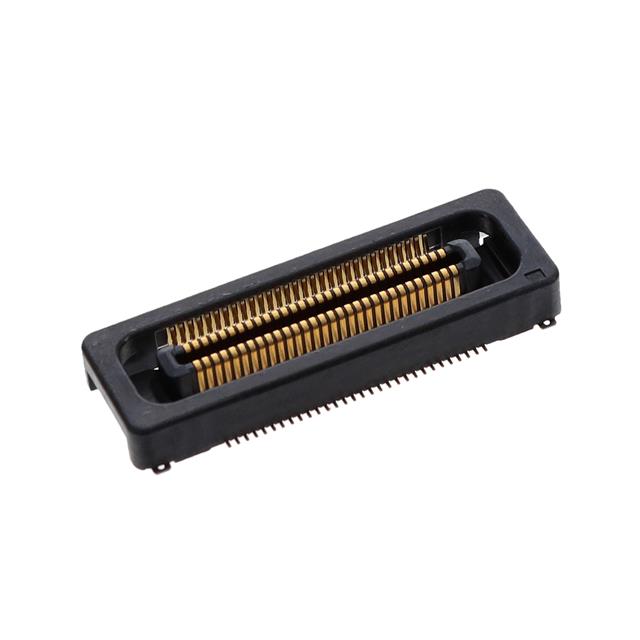

145655060000829+T

Active

KYOCERA AVX

PLUG 0.5MM - 4-7MM - VERT -FLOAT

Search across all available documentation for this part.

Active

KYOCERA AVX

PLUG 0.5MM - 4-7MM - VERT -FLOAT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Plug, Floating Surface Mount Gold

Technical documentation and resources

Specification	145655060000829+T	145655 Series

Connector Type	Plug, Floating	Plug, Floating
Contact Finish	Gold	Gold
Features	Solder Retention, Board Guide	Solder Retention, Board Guide
Height Above Board	3.05 mm	3.05 mm
Height Above Board	0.12 in	0.12 in
Mated Stacking Heights	4 mm, 6 mm, 7 mm	4 - 7 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	60	30 - 100
Number of Rows	2	2
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in

Part	Number of Positions	Number of Rows	Connector Type	Mated Stacking Heights	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board	Features
KYOCERA AVX 145655080000829+T	80	2	Floating, Plug	4 mm, 6 mm, 7 mm	Gold	0.5 mm	0.02 in	Surface Mount	3.05 mm	0.12 in	Board Guide, Solder Retention
KYOCERA AVX 145655030000829+T	30	2	Floating, Plug	4 mm, 6 mm, 7 mm	Gold	0.5 mm	0.02 in	Surface Mount	3.05 mm	0.12 in	Board Guide, Solder Retention
KYOCERA AVX 145655050000829+T	50	2	Floating, Plug	4 mm, 6 mm, 7 mm	Gold	0.5 mm	0.02 in	Surface Mount	3.05 mm	0.12 in	Board Guide, Solder Retention
KYOCERA AVX 145655060000829+T	60	2	Floating, Plug	4 mm, 6 mm, 7 mm	Gold	0.5 mm	0.02 in	Surface Mount	3.05 mm	0.12 in	Board Guide, Solder Retention
KYOCERA AVX 145655100000829+T	100	2	Floating, Plug	4 mm, 6 mm, 7 mm	Gold	0.5 mm	0.02 in	Surface Mount	3.05 mm	0.12 in	Board Guide, Solder Retention
KYOCERA AVX 145655040000829+T	40	2	Floating, Plug	4 mm, 6 mm, 7 mm	Gold	0.5 mm	0.02 in	Surface Mount	3.05 mm	0.12 in	Board Guide, Solder Retention
