146-43-308-41-013000

Active

Mill-Max Manufacturing Corp.

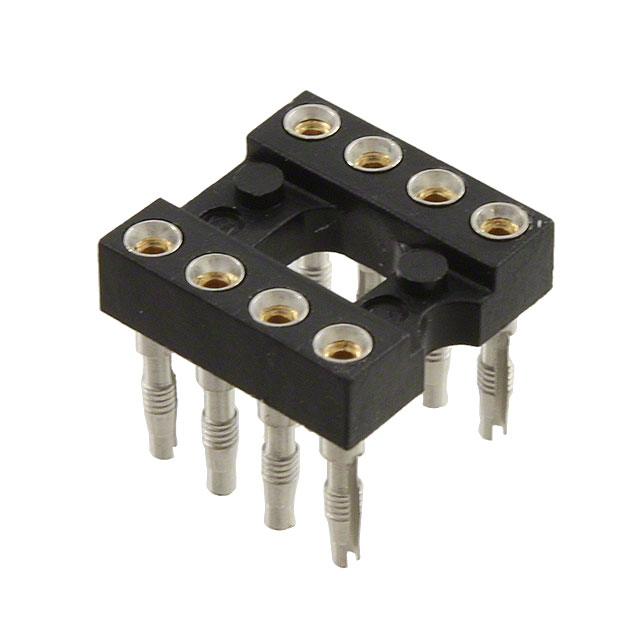

CONN IC DIP SOCKET 8POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

146-43-308-41-013000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 8POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	146-43-308-41-013000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Press-Fit
Termination Post Length	4.45 mm
Termination Post Length	0.175 in
Type	0.3 "
Type	7.62 mm
Type	DIP

146-43 Series

Part	Contact Material - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Features	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Contact Resistance	Contact Finish - Post	Mounting Type	Pitch - Post	Pitch - Post	Material Flammability Rating	Number of Positions or Pins (Grid)	Termination	Termination Post Length	Termination Post Length	Housing Material	Type	Type	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 146-43-318-41-012000	Brass Alloy	200 µin	5.08 µm	-55 °C	125 °C	Open Frame	0.1 in	2.54 mm	3 A	Gold	30 Áin	0.76 Ám	Beryllium Copper	10 mOhm	Tin	Through Hole	2.54 mm	0.1 in	UL94 V-0	18	Press-Fit	0.12 in	3.05 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.3 "	7.62 mm	DIP
Mill-Max Manufacturing Corp. 146-43-316-41-013000	Brass Alloy	200 µin	5.08 µm	-55 °C	125 °C	Open Frame	0.1 in	2.54 mm	3 A	Gold	30 Áin	0.76 Ám	Beryllium Copper	10 mOhm	Tin	Through Hole	2.54 mm	0.1 in	UL94 V-0	16	Press-Fit	0.175 in	4.45 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.3 "	7.62 mm	DIP
Mill-Max Manufacturing Corp. 146-43-632-41-012000	Brass Alloy	200 µin	5.08 µm	-55 °C	125 °C	Open Frame	0.1 in	2.54 mm	3 A	Gold	30 Áin	0.76 Ám	Beryllium Copper	10 mOhm	Tin	Through Hole	2.54 mm	0.1 in	UL94 V-0		Press-Fit	0.12 in	3.05 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.6 in	15.24 mm	DIP	2 x 16	32
Mill-Max Manufacturing Corp. 146-43-624-41-012000	Brass Alloy	200 µin	5.08 µm	-55 °C	125 °C	Open Frame	0.1 in	2.54 mm	3 A	Gold	30 Áin	0.76 Ám	Beryllium Copper	10 mOhm	Tin	Through Hole	2.54 mm	0.1 in	UL94 V-0	24	Press-Fit	0.12 in	3.05 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.6 in	15.24 mm	DIP
Mill-Max Manufacturing Corp. 146-43-640-41-012000	Brass Alloy	200 µin	5.08 µm	-55 °C	125 °C	Open Frame	0.1 in	2.54 mm	3 A	Gold	30 Áin	0.76 Ám	Beryllium Copper	10 mOhm	Tin	Through Hole	2.54 mm	0.1 in	UL94 V-0	40	Press-Fit	0.12 in	3.05 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.6 in	15.24 mm	DIP			20	2
Mill-Max Manufacturing Corp. 146-43-316-41-012000	Brass Alloy	200 µin	5.08 µm	-55 °C	125 °C	Open Frame	0.1 in	2.54 mm	3 A	Gold	30 Áin	0.76 Ám	Beryllium Copper	10 mOhm	Tin	Through Hole	2.54 mm	0.1 in	UL94 V-0	16	Press-Fit	0.12 in	3.05 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.3 "	7.62 mm	DIP
Mill-Max Manufacturing Corp. 146-43-422-41-013000	Brass Alloy	200 µin	5.08 µm	-55 °C	125 °C	Open Frame	0.1 in	2.54 mm	3 A	Gold	30 Áin	0.76 Ám	Beryllium Copper	10 mOhm	Tin	Through Hole	2.54 mm	0.1 in	UL94 V-0	22	Press-Fit	0.175 in	4.45 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.4 in	10.16 mm	DIP
Mill-Max Manufacturing Corp. 146-43-308-41-013000	Brass Alloy	200 µin	5.08 µm	-55 °C	125 °C	Open Frame	0.1 in	2.54 mm	3 A	Gold	30 Áin	0.76 Ám	Beryllium Copper		Tin	Through Hole	2.54 mm	0.1 in		8	Press-Fit	0.175 in	4.45 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.3 "	7.62 mm	DIP
Mill-Max Manufacturing Corp. 146-43-628-41-012000	Brass Alloy	200 µin	5.08 µm	-55 °C	125 °C	Open Frame	0.1 in	2.54 mm	3 A	Gold	30 Áin	0.76 Ám	Beryllium Copper	10 mOhm	Tin	Through Hole	2.54 mm	0.1 in	UL94 V-0	28	Press-Fit	0.12 in	3.05 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.6 in	15.24 mm	DIP
Mill-Max Manufacturing Corp. 146-43-306-41-012000	Brass Alloy	200 µin	5.08 µm	-55 °C	125 °C	Open Frame	0.1 in	2.54 mm	3 A	Gold	30 Áin	0.76 Ám	Beryllium Copper	10 mOhm	Tin	Through Hole	2.54 mm	0.1 in	UL94 V-0		Press-Fit	0.12 in	3.05 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.3 "	7.62 mm	DIP			3	2	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.52
		10	$ 1.32
		25	$ 1.26
		50	$ 1.24
		100	$ 1.18
		250	$ 1.07
		500	$ 0.99

Description

General part information

146-43 Series

8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
