SRU5028A-680Y
ActiveBourns Inc.

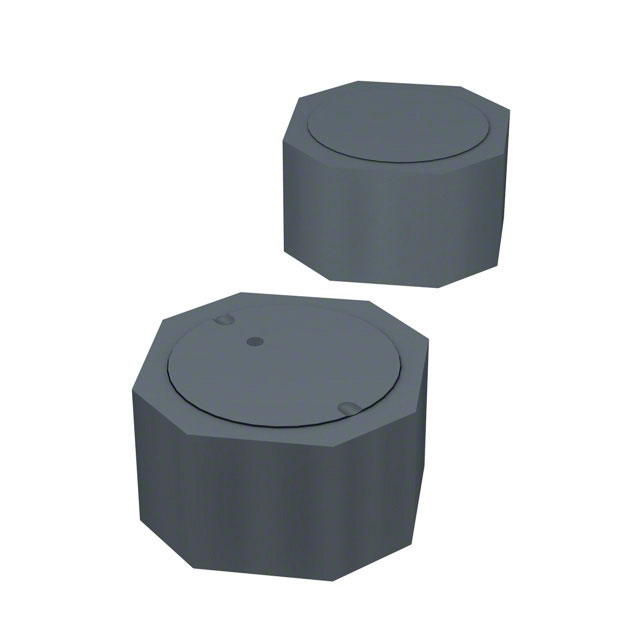

INDUCTOR POWER SHIELDED WIREWOUND 68UH 30% 100KHZ 13Q-FACTOR FERRITE 0.56A 0.55OHM DCR AUTOMOTIVE AEC-Q200 T/R
Deep-Dive with AI
Search across all available documentation for this part.
SRU5028A-680Y
ActiveBourns Inc.
INDUCTOR POWER SHIELDED WIREWOUND 68UH 30% 100KHZ 13Q-FACTOR FERRITE 0.56A 0.55OHM DCR AUTOMOTIVE AEC-Q200 T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRU5028A-680Y |
|---|---|
| Current - Saturation (Isat) | 460 mA |
| Current Rating (Amps) | 0.56 A |
| DC Resistance (DCR) [Max] | 550 mOhm |
| Frequency - Self Resonant | 10 MHz |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 68 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 13, 2.52 MHz |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.205 in |
| Size / Dimension [x] | 5.2 mm |
| Size / Dimension [y] | 0.205 " |
| Size / Dimension [y] | 5.2 mm |
| Tolerance | 30 % |
| Type | Wirewound, Drum Core |
SRU5028A Series
| Part | Height - Seated (Max) | Height - Seated (Max) [Max] | Tolerance | Inductance | DC Resistance (DCR) [Max] | Current Rating (Amps) | Q @ Freq | Inductance Frequency - Test | Material - Core | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Shielding | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Frequency - Self Resonant | Current - Saturation (Isat) | Type | Ratings | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 3 mm | 0.118 in | 30 % | 100 µH | 800 mOhm | 470 mA | 15 796 kHz | 100 kHz | Ferrite | 0.205 " | 5.2 mm | 0.205 in | 5.2 mm | Shielded | Surface Mount | 125 °C | -40 °C | Nonstandard | 8 MHz | 420 mA | Drum Core Wirewound | AEC-Q200 | |
Bourns Inc. | 3 mm | 0.118 in | 30 % | 22 µH | 950 mA | 2.52 MHz 15 | 100 kHz | Ferrite | 0.205 " | 5.2 mm | 0.205 in | 5.2 mm | Shielded | Surface Mount | 125 °C | -40 °C | Nonstandard | 18 MHz | 850 mA | Drum Core Wirewound | AEC-Q200 | 210 mOhm | |
Bourns Inc. | 3 mm | 0.118 in | 30 % | 68 µH | 550 mOhm | 0.56 A | 2.52 MHz 13 | 100 kHz | Ferrite | 0.205 " | 5.2 mm | 0.205 in | 5.2 mm | Shielded | Surface Mount | 125 °C | -40 °C | Nonstandard | 10 MHz | 460 mA | Drum Core Wirewound | AEC-Q200 | |
Bourns Inc. | 3 mm | 0.118 in | 30 % | 1.2 µH | 3.5 A | 7.96 MHz 10 | 100 kHz | Ferrite | 0.205 " | 5.2 mm | 0.205 in | 5.2 mm | Shielded | Surface Mount | 125 °C | -40 °C | Nonstandard | 200 MHz | 3.4 A | Drum Core Wirewound | AEC-Q200 | ||
Bourns Inc. | 3 mm | 0.118 in | 30 % | 6.8 µH | 56 mOhm | 2 A | 7.96 MHz 10 | 100 kHz | Ferrite | 0.205 " | 5.2 mm | 0.205 in | 5.2 mm | Shielded | Surface Mount | 125 °C | -40 °C | Nonstandard | 45 MHz | 1.55 A | Drum Core Wirewound | AEC-Q200 | |
Bourns Inc. | 3 mm | 0.118 in | 30 % | 2.2 µH | 3.2 A | 7.96 MHz 10 | 100 kHz | Ferrite | 0.205 " | 5.2 mm | 0.205 in | 5.2 mm | Shielded | Surface Mount | 125 °C | -40 °C | Nonstandard | 130 MHz | 2.5 A | Drum Core Wirewound | AEC-Q200 | 27 mOhm |
