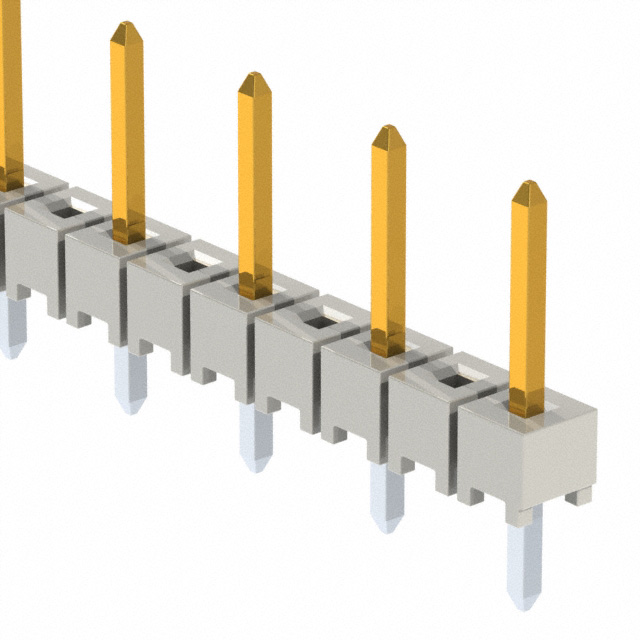

HTSW-219-07-SS-S

Active

Samtec Inc.

CONN HEADER VERT 19POS 5.08MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 19POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	HTSW-219-07-SS-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	19
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.43 in
Overall Contact Length	10.92 mm
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Insulation Color	Contact Finish - Post	Shrouding	Insulation Height	Insulation Height	Contact Finish - Mating	Current Rating (Amps)	Fastening Type	Mounting Type	Contact Type	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Shape	Connector Type	Contact Material	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Termination	Pitch - Mating	Pitch - Mating	Insulation Material	Style
Samtec Inc. HTSW-219-07-SS-S	Natural	Tin	Unshrouded	0.1 in	2.54 mm	Gold	Varies by Wire Gauge	Push-Pull	Through Hole	Male Pin	0.43 in	10.92 mm	2.54 mm	0.1 in	19	-55 °C	125 °C	All	Square	Header	Phosphor Bronze	0.23 in	5.84 mm	1	30 Áin	0.76 Ám	UL94 V-0	Solder	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)	Board to Board Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.65

General part information

Connector Header Through Hole 19 position 0.200" (5.08mm)
