TRG1512-U-01E03 VI

Active

Cincon Electronics Co. LTD

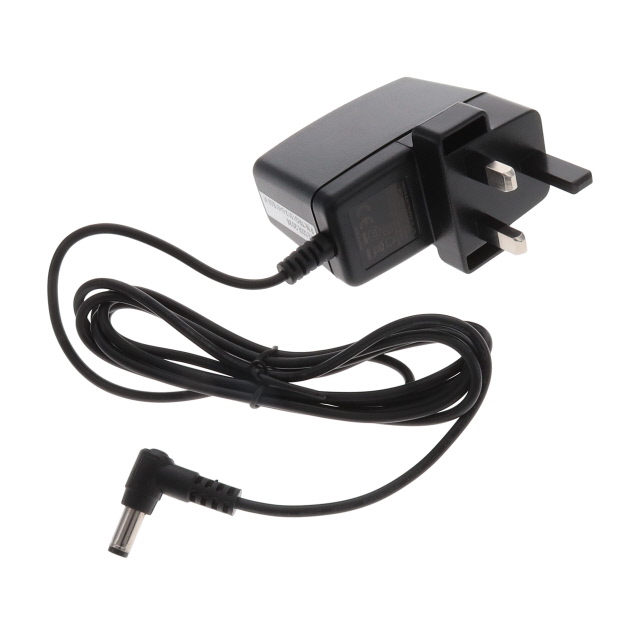

AC/DC WALL MOUNT ADAPTER 12V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TRG15 Cable DC Plug Configuration

TRG1512-U-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 12V 12W

Deep-Dive with AI

DocumentsDatasheet TRG15 Cable DC Plug Configuration

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRG1512-U-01E03 VI

Applications	ITE (Commercial)
Approval Agency	PSE, cULus, TUV, GS, FCC, CE
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class I)
Input Connector	BS 1363
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	United Kingdom
Size / Dimension [x]	72 mm
Size / Dimension [x]	2.84 in
Size / Dimension [y]	1.38 "
Size / Dimension [y]	35 mm
Size / Dimension [z]	52 mm
Size / Dimension [z]	2.05 in
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

TRG1512 Series

Part	Input Connector	Cord Length	Cord Length	Approval Agency	Form	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	No Load Power Consumption [Max]	Applications	Input Type	Region Utilized	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Polarization	Current - Output (Max) [Max]	Voltage - Output
Cincon Electronics Co. LTD TRG1512-A-01E03 VI	NEMA 1-15P	70.9 in	1.8 m	CE cULus FCC GS PSE TUV	Wall Mount (Class II)	12 W	-20 C	60 °C	75 mW	ITE (Commercial)	Fixed Blade	North America	60950-1	90 VAC	264 VAC	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	CoC Tier 2 Level VI	Positive Center	1 A	12 V
Cincon Electronics Co. LTD TRG1512-S-01E03 VI	AS 3112	70.9 in	1.8 m	CE cULus FCC GS PSE TUV	Wall Mount (Class II)	12 W	-20 C	60 °C	75 mW	ITE (Commercial)	Fixed Blade	Australia	60950-1	90 VAC	264 VAC	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	CoC Tier 2 Level VI	Positive Center	1 A	12 V
Cincon Electronics Co. LTD TRG1512-01-S-01E03 VI	AS 3112	70.9 in	1.8 m	CE cULus FCC GS PSE TUV	Wall Mount (Class II)	14 Watts	-20 C	60 °C	75 mW	ITE (Commercial)	Fixed Blade	Australia	60950-1	90 VAC	264 VAC	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	CoC Tier 2 Level VI	Positive Center	1 A	13.6 V
Cincon Electronics Co. LTD TRG1512-01-A-01E03 VI	NEMA 1-15P	70.9 in	1.8 m	CE cULus FCC GS PSE TUV	Wall Mount (Class II)	14 Watts	-20 C	60 °C	75 mW	ITE (Commercial)	Fixed Blade	North America	60950-1	90 VAC	264 VAC	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	CoC Tier 2 Level VI	Positive Center	1 A	13.6 V
Cincon Electronics Co. LTD TRG1512-U-01E03 VI	BS 1363	70.9 in	1.8 m	CE cULus FCC GS PSE TUV	Wall Mount (Class I)	12 W	-20 C	60 °C	75 mW	ITE (Commercial)	Fixed Blade	United Kingdom	60950-1	90 VAC	264 VAC	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	CoC Tier 2 Level VI	Positive Center	1 A	12 V
Cincon Electronics Co. LTD TRG1512-01-U-01E03 VI	BS 1363	70.9 in	1.8 m	CE cULus FCC GS PSE TUV	Wall Mount (Class I)	14 Watts	-20 C	60 °C	75 mW	ITE (Commercial)	Fixed Blade	United Kingdom	60950-1	90 VAC	264 VAC	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	CoC Tier 2 Level VI	Positive Center	1 A	13.6 V
Cincon Electronics Co. LTD TRG1512-01-E-01E03 VI	KSC 8305	70.9 in	1.8 m	CE cULus FCC GS PSE TUV	Wall Mount (Class II)	14 Watts	-20 C	60 °C	75 mW	ITE (Commercial)	Fixed Blade	Europe	60950-1	90 VAC	264 VAC	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	CoC Tier 2 Level VI	Positive Center	1 A	13.6 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.00
		5	$ 10.67
		10	$ 10.35
		25	$ 9.83
		50	$ 9.44
		100	$ 9.11

Description

General part information

TRG1512 Series

12V 12 W AC/DC External Wall Mount (Class I) Adapter Fixed Blade Input

Documents

Technical documentation and resources

Datasheet

TRG15 Cable DC Plug Configuration

Datasheet
