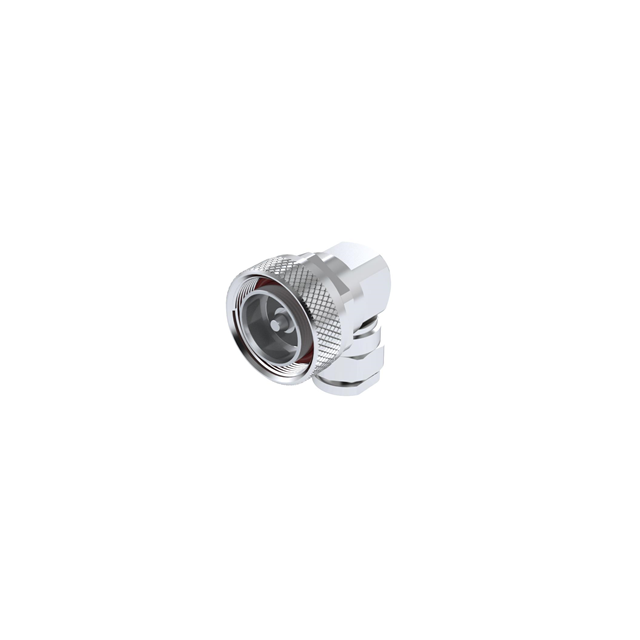

R185160000

Active

Radiall USA, Inc.

7-16 / RIGHT ANGLE PLUG CLAMP TY

Search across all available documentation for this part.

Active

Radiall USA, Inc.

7-16 / RIGHT ANGLE PLUG CLAMP TY

Technical Specifications

Parameters and characteristics for this part

Specification	R185160000

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-213, 225, 214
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	7/16 DIN
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	1400 V

Part	Number of Ports	Impedance	Mounting Type	Body Finish	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Center Contact Material	Dielectric Material	Housing Color	Contact Termination	Connector Style	Cable Group	Center Contact Plating	Voltage Rating	Body Material	Connector Type	Shield Termination	Frequency - Max [Max]
Radiall USA, Inc. R185160000	1	50 Ohms	Free Hanging (In-Line) Right Angle	White Bronze	IP67 - Dust Tight Waterproof	155 °C	-55 °C	500	Brass	Polytetrafluoroethylene (PTFE)	Silver	Solder	7/16 DIN	214 225 RG-213	Silver	1400 V	Brass	Male Pin Plug	Clamp	7.5 GHz
Radiall USA, Inc. R185160000W	1	50 Ohms	Free Hanging (In-Line) Right Angle	White Bronze	IP67 - Dust Tight Waterproof	155 °C	-55 °C	500	Brass	Polytetrafluoroethylene (PTFE)	Silver	Solder	7/16 DIN	214 225 RG-213	Silver	1400 V	Brass	Male Pin Plug	Clamp	7.5 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 94.16

General part information

7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources

No documents available
