1241.6622.5120000

Active

SCHURTER Inc.

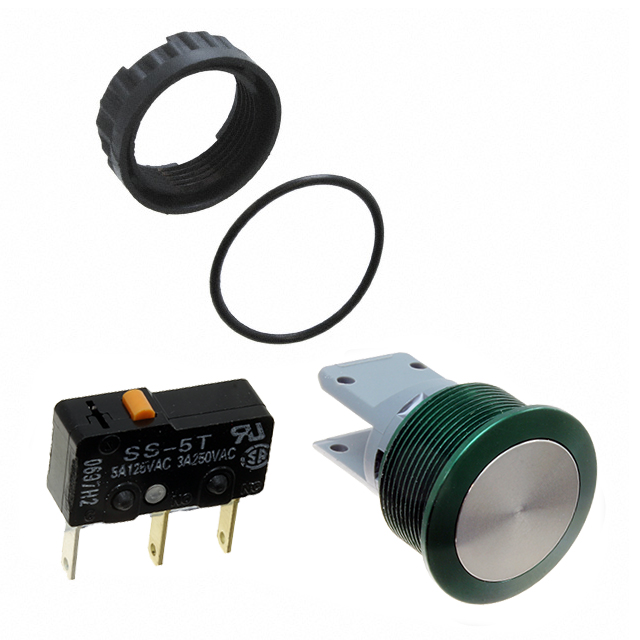

SWITCH PUSHBUTTON SPDT 5A 250V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.6622.5120000

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal
Voltage Rating - AC	125 V

SWITCH PUSHBUTTON SPDT 5A 250V

Part	Mounting Type	Color - Actuator/Cap	Current Rating (Amps)	Actuator Type	Mechanical Life	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Ingress Protection	Circuit	Type	Termination Style	Actuator Marking	Electrical Life
SCHURTER Inc. 1241.6622.5120000	Panel Mount, Front	Green	5 A	Button, Flush, Round	1500000 Cycles	On-Mom	-25 °C	85 °C	19.1 mm	125 V	IP40	SPDT	Anti-Vandal	Quick Connect - 0.110" (2.8mm)	No Marking	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.58

General part information

Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
