96570.6

Active

Pflitsch

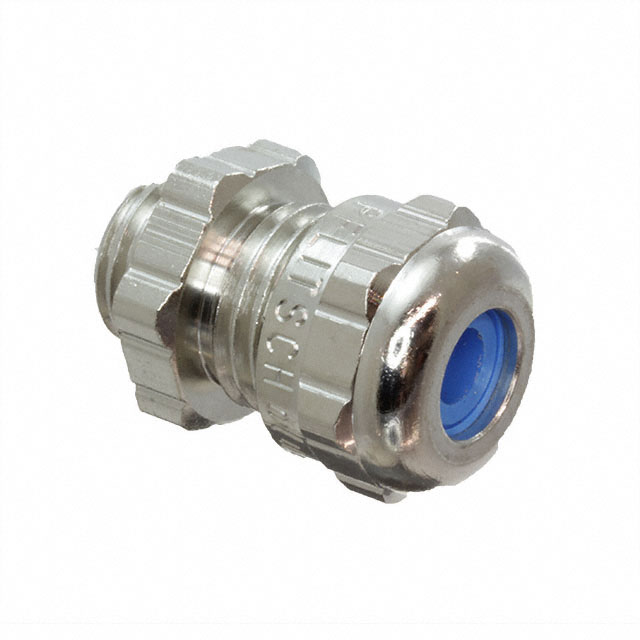

CABLE FEEDTHROUGH 5.08-7.62MM

Search across all available documentation for this part.

Active

Pflitsch

CABLE FEEDTHROUGH 5.08-7.62MM

Technical Specifications

Parameters and characteristics for this part

Specification	96570.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	7.62 mm
Outside Cable Diameter (Max) [Max]	0.3 in
Outside Cable Diameter (Min) [Min] [diameter]	5.08 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.2 in
Panel Hole Size	11.9 mm
Panel Hole Size	0.47 in
Thread Length	0.2 in
Thread Length	5.08 mm
Thread Size	M12x1.5
Type	Cable Feedthrough

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Material	Includes	Panel Hole Size	Panel Hole Size	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Pflitsch 96570.7/15	Cable Feedthrough	500 °C	-60 °C	M12x1.5	5.08 mm	0.2 in	Silver	IP68 - Dust Tight Waterproof; NEMA 4X	7.62 mm	0.3 in	Stainless Steel	Sealing Ring	11.9 mm	0.47 in
Pflitsch 96570.7	Cable Feedthrough	500 °C	-60 °C	M12x1.5	5.08 mm	0.2 in	Silver	IP68 - Dust Tight Waterproof; NEMA 4X	7.62 mm	0.3 in	Stainless Steel	Sealing Ring	11.9 mm	0.47 in	0.2 in	5.08 mm
Pflitsch 96570.6	Cable Feedthrough	300 °C	-40 °C	M12x1.5	5.08 mm	0.2 in	Silver	IP68 - Dust Tight Waterproof; NEMA 4X	7.62 mm	0.3 in	Brass Nickel Plated	Sealing Ring	11.9 mm	0.47 in	0.2 in	5.08 mm
Pflitsch 96570.1	Cable Feedthrough	100 °C	-20 C	M12x1.5	5.08 mm	0.2 in	Black	IP68 - Dust Tight Waterproof; NEMA 4X	7.62 mm	0.3 in	Polyamide (PA) Nylon		11.9 mm	0.47 in	0.2 in	5.08 mm
Pflitsch 96570.6/15	Cable Feedthrough	300 °C	-40 °C	M12x1.5	2 mm	0.079 in	Silver				Brass Nickel Plated	Sealing Ring	12 mm	0.472 in			7.5 mm	0.295 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Feedthrough Brass, Nickel Plated M12x1.5 Silver
