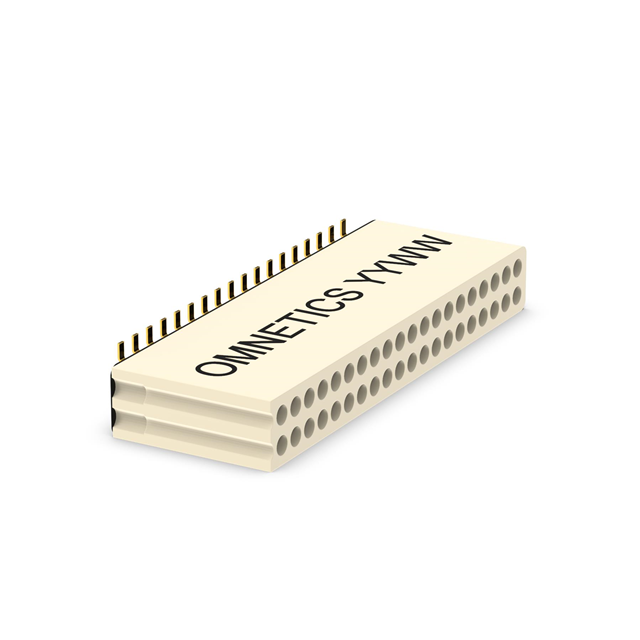

A79026-001

Active

Omnetics

36 POSITION DUAL ROW MALE NANO-M

Search across all available documentation for this part.

Active

Omnetics

36 POSITION DUAL ROW MALE NANO-M

Technical Specifications

Parameters and characteristics for this part

Specification	A79026-001

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Guide Pin
Insulation Color	Natural
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Thermoplastic
Mounting Type	Surface Mount
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.025 in
Pitch - Mating	0.64 mm
Row Spacing - Mating	0.03 in
Row Spacing - Mating	0.76 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

36 POSITION DUAL ROW MALE NANO-M

Part	Termination	Shrouding	Features	Contact Shape	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating	Style	Contact Material	Fastening Type	Insulation Color	Contact Type	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Row Spacing - Mating	Row Spacing - Mating
Omnetics A79026-001	Solder	Shrouded - 4 Wall	Guide Pin	Circular	2	0.025 in	0.64 mm	36	Gold	Board to Cable/Wire	Beryllium Copper	Push-Pull	Natural	Male Pin	All	Surface Mount	1.27 µm	50 µin	Header	0.173 in	4.4 mm	-55 °C	125 °C	Thermoplastic	0.03 in	0.76 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 36 position 0.025" (0.64mm)
