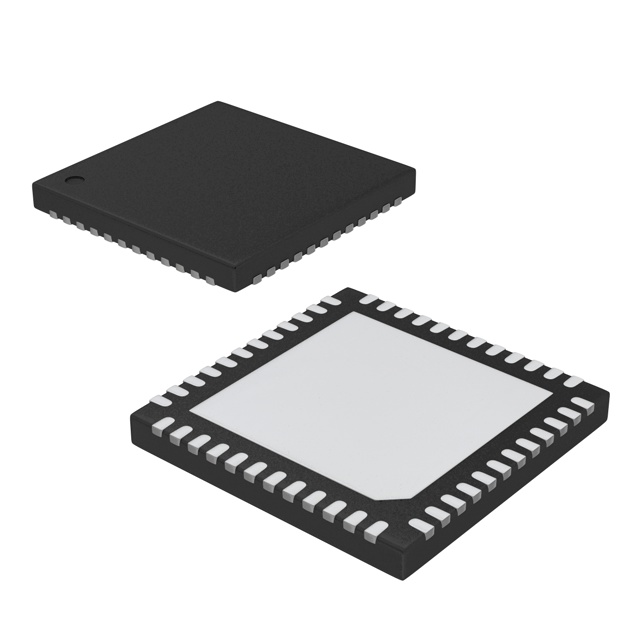

SIT92211AI-X

Active

SiTime

-40C TO 85C, 48PIN, 7070, 1.8V-3

Search across all available documentation for this part.

Active

SiTime

-40C TO 85C, 48PIN, 7070, 1.8V-3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Clock Fanout Buffer (Distribution), Translator IC 3:10 2.1 GHz 48-VFQFN Exposed Pad

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SIT92211AI-X	SIT92211 Series

Differential - Input:Output [custom]	True	True
Differential - Input:Output [custom]	True	True
Frequency - Max [Max]	2.1 GHz	2.1 GHz
Input	LVCMOS, XTAL, LVDS, SSTL, CML, HCSL, LVPECL	LVCMOS, XTAL, LVDS, SSTL, CML, HCSL, LVPECL
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	3	3
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	LVDS, LVCMOS, HIZ, LVPECL, HCSL	LVDS, LVCMOS, HIZ, LVPECL, HCSL
Package / Case	48-VFQFN Exposed Pad	48-VFQFN Exposed Pad
Ratio - Input:Output	3:10	3:10
Supplier Device Package	48-QFN (7x7)	48-QFN (7x7)
Type	Fanout Buffer (Distribution), Translator	Fanout Buffer (Distribution), Translator
Voltage - Supply [Max]	3.3 V	3.3 V
Voltage - Supply [Min]	1.8 V	1.8 V

-40C TO 85C, 48PIN, 7070, 1.8V-3

Part	Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Supplier Device Package	Number of Circuits	Type	Ratio - Input:Output	Mounting Type	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Input
SiTime SIT92211AI-T	HCSL, HIZ, LVCMOS, LVDS, LVPECL	3.3 V	1.8 V	48-VFQFN Exposed Pad	48-QFN (7x7)	3	Fanout Buffer (Distribution), Translator	3:10	Surface Mount	2.1 GHz	85 °C	-40 °C	CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL, XTAL
SiTime SIT92211AI	HCSL, HIZ, LVCMOS, LVDS, LVPECL	3.3 V	1.8 V	48-VFQFN Exposed Pad	48-QFN (7x7)	3	Fanout Buffer (Distribution), Translator	3:10	Surface Mount	2.1 GHz	85 °C	-40 °C	CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL, XTAL
SiTime SIT92211AI-Y	HCSL, HIZ, LVCMOS, LVDS, LVPECL	3.3 V	1.8 V	48-VFQFN Exposed Pad	48-QFN (7x7)	3	Fanout Buffer (Distribution), Translator	3:10	Surface Mount	2.1 GHz	85 °C	-40 °C	CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL, XTAL
SiTime SIT92211AI-X	HCSL, HIZ, LVCMOS, LVDS, LVPECL	3.3 V	1.8 V	48-VFQFN Exposed Pad	48-QFN (7x7)	3	Fanout Buffer (Distribution), Translator	3:10	Surface Mount	2.1 GHz	85 °C	-40 °C	CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL, XTAL
