Q-26067000M024i

Active

Amphenol Custom Cable

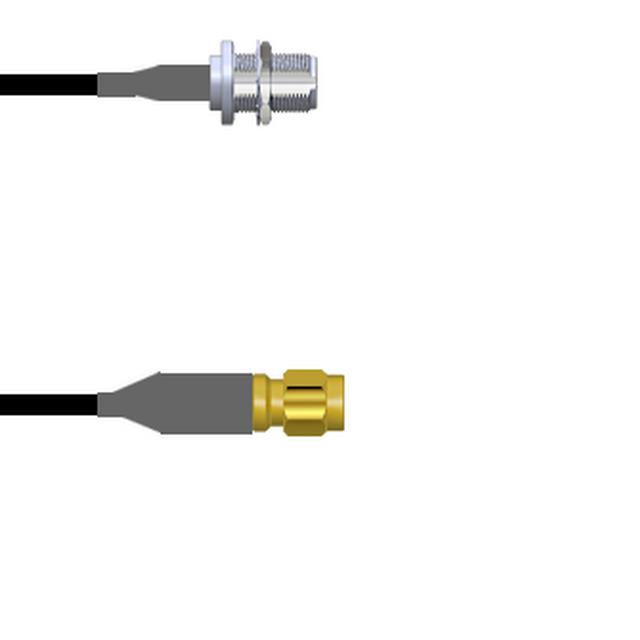

CBL ASSY RPSMA-NTYPE PLG-JCK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-26067000M024i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE PLG-JCK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-26067000M024i

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Q-260670 Series

Part	2nd Connector Mounting Feature	Cable Type	Frequency - Max [Max]	Style	2nd Connector Mounting Type	Length	Length	Length	Features	2nd Connector	Overall Impedance	1st Contact Gender	1st Connector Mounting Type	1st Connector	Color	2nd Contact Gender
Amphenol Custom Cable Q-26067000M084i	Bulkhead - Front Side Nut	LMR 240	6000 MHz	RP-SMA to N-Type	Panel Mount	84 in	2.1 m	7 ft	Shielded	N-Type Jack	50 Ohms	Female	Free Hanging (In-Line)	RP-SMA Plug	Black	Female
Amphenol Custom Cable Q-26067000M.75M	Bulkhead - Front Side Nut	LMR 240	6000 MHz	RP-SMA to N-Type	Panel Mount	29.53 "	750 mm		Shielded	N-Type Jack	50 Ohms	Female	Free Hanging (In-Line)	RP-SMA Plug	Black	Female
Amphenol Custom Cable Q-26067000M108i	Bulkhead - Front Side Nut	LMR 240	6000 MHz	RP-SMA to N-Type	Panel Mount	108 in	2.7 m	9 ft	Shielded	N-Type Jack	50 Ohms	Female	Free Hanging (In-Line)	RP-SMA Plug	Black	Female
Amphenol Custom Cable Q-26067000M1.5M	Bulkhead - Front Side Nut	LMR 240	6000 MHz	RP-SMA to N-Type	Panel Mount	59.1 in	1.5 m	4.9 ft	Shielded	N-Type Jack	50 Ohms	Female	Free Hanging (In-Line)	RP-SMA Plug	Black	Female
Amphenol Custom Cable Q-26067000M048i	Bulkhead - Front Side Nut	LMR 240	6000 MHz	RP-SMA to N-Type	Panel Mount	48 in	1200 mm	4 ft	Shielded	N-Type Jack	50 Ohms	Female	Free Hanging (In-Line)	RP-SMA Plug	Black	Female
Amphenol Custom Cable Q-26067000M003M	Bulkhead - Front Side Nut	LMR 240	6000 MHz	RP-SMA to N-Type	Panel Mount	118.1 in	3 m	9.8 '	Shielded	N-Type Jack	50 Ohms	Female	Free Hanging (In-Line)	RP-SMA Plug	Black	Female
Amphenol Custom Cable Q-26067000M024i	Bulkhead - Front Side Nut	LMR 240	6000 MHz	RP-SMA to N-Type	Panel Mount	24 "	609.6 mm		Shielded	N-Type Jack	50 Ohms	Female	Free Hanging (In-Line)	RP-SMA Plug	Black	Female
Amphenol Custom Cable Q-26067000M2.5M	Bulkhead - Front Side Nut	LMR 240	6000 MHz	RP-SMA to N-Type	Panel Mount	98.4 in	2.5 m	8.2 '	Shielded	N-Type Jack	50 Ohms	Female	Free Hanging (In-Line)	RP-SMA Plug	Black	Female
Amphenol Custom Cable Q-26067000M072i	Bulkhead - Front Side Nut	LMR 240	6000 MHz	RP-SMA to N-Type	Panel Mount	72 in	1.8 m	6 ft	Shielded	N-Type Jack	50 Ohms	Female	Free Hanging (In-Line)	RP-SMA Plug	Black	Female
Amphenol Custom Cable Q-26067000M060i	Bulkhead - Front Side Nut	LMR 240	6000 MHz	RP-SMA to N-Type	Panel Mount	5 '	1.5 m	5 ft	Shielded	N-Type Jack	50 Ohms	Female	Free Hanging (In-Line)	RP-SMA Plug	Black	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 121.81
		25	$ 119.49
		50	$ 117.16
		100	$ 114.84
		250	$ 112.51

Description

General part information

Q-260670 Series

Cable Assembly Coaxial RP-SMA to N-Type LMR 240 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
