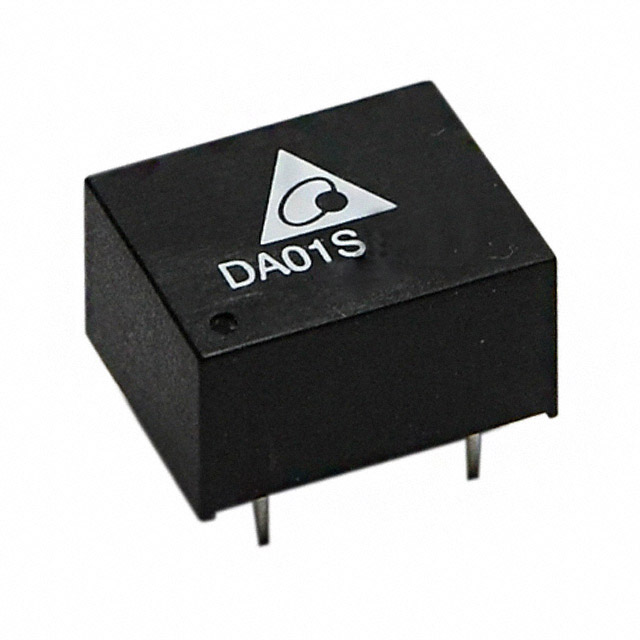

DA01S0509A

Obsolete

Delta Electronics

DC DC CONVERTER 9V 1W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER 9V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Isolation	Efficiency	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Package / Case	Package / Case	Type	Features	Voltage - Input (Min) [Min]
Delta Electronics DA01S2405A	1	200 mA	5 V	3000 V	70 %	Medical	Through Hole	85 °C	-40 °C	12.7 mm	0.5 in	0.31 in	7.9 mm	10.2 mm	0.4 in	26.4 V	7-DIP Module	4 Lead	Isolated Module	SCP	21.6 V
Delta Electronics DA01S0509A	1	110 mA	9 V	3000 V	76 %	Medical	Through Hole	85 °C	-40 °C	12.7 mm	0.5 in	0.31 in	7.9 mm	10.2 mm	0.4 in	5.5 V	7-DIP Module	4 Lead	Isolated Module	SCP	4.5 V
Delta Electronics DA01S1212A	1	84 mA	12 V	3000 V	79 %	Medical	Through Hole	85 °C	-40 °C	12.7 mm	0.5 in	0.31 in	7.9 mm	10.2 mm	0.4 in	13.2 V	7-DIP Module	4 Lead	Isolated Module	SCP	10.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 9V 110mA 4.5V - 5.5V Input
