R60II4100AA30J

Active

KEMET

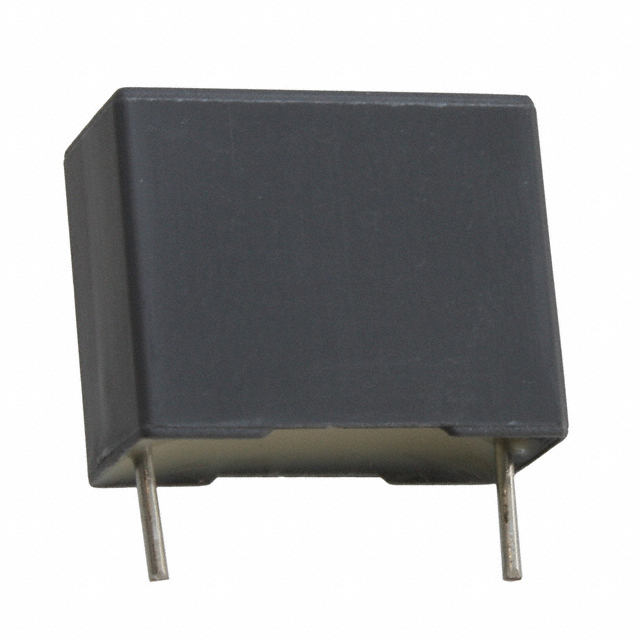

CAP FILM 1UF 5% 250VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R60II4100AA30J

R60II4100AA30J

Active

KEMET

CAP FILM 1UF 5% 250VDC RADIAL

Deep-Dive with AI

DocumentsDatasheet R60II4100AA30J

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R60II4100AA30J

Applications	Automotive
Capacitance	1 µF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max) [Max]	0.575 in
Height - Seated (Max) [Max]	14.6 mm
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	8.5 mm
Size / Dimension [y]	0.335 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	160 V
Voltage Rating - DC	250 V

R60II Series

Part	Termination	Dielectric Material	Ratings	Voltage Rating - AC	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - DC	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R60II31005030J	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in	0.437 in	11.1 mm	250 V	100000 pF	18 mm	0.197 "	5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	5 %	Radial
KEMET R60II36805030K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in			250 V	680 nF	18 mm	0.295 in	7.5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial
KEMET R60II31004030K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in	0.437 in	11.1 mm	250 V	100000 pF	18 mm	0.197 "	5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial
KEMET R60II36804030K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in			250 V	680 nF	18 mm	0.295 in	7.5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial
KEMET R60II32205030K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in	0.437 in	11.1 mm	250 V	0.22 µF	18 mm	0.197 "	5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial
KEMET R60II31005030K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in	0.437 in	11.1 mm	250 V	100000 pF	18 mm	0.197 "	5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial
KEMET R60II4100AA30J	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in	0.575 in	14.6 mm	250 V	1 µF	18 mm	0.335 in	8.5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	5 %	Radial
KEMET R60II32204030K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in	0.437 in	11.1 mm	250 V	0.22 µF	18 mm	0.197 "	5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial
KEMET R60II34705030J	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in			250 V	0.47 µF	18 mm	0.236 in	6 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	5 %	Radial	12.1 mm	0.476 "
KEMET R60II3470AA30K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in			250 V	0.47 µF	18 mm	0.236 in	6 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial	12.1 mm	0.476 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.45
		10	$ 1.09
		50	$ 0.99
		100	$ 0.81
		500	$ 0.65
		1000	$ 0.57
		3000	$ 0.53
		5000	$ 0.51
Newark	Each	1000	$ 0.58
		2500	$ 0.53

Description

General part information

R60II Series

1 µF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
