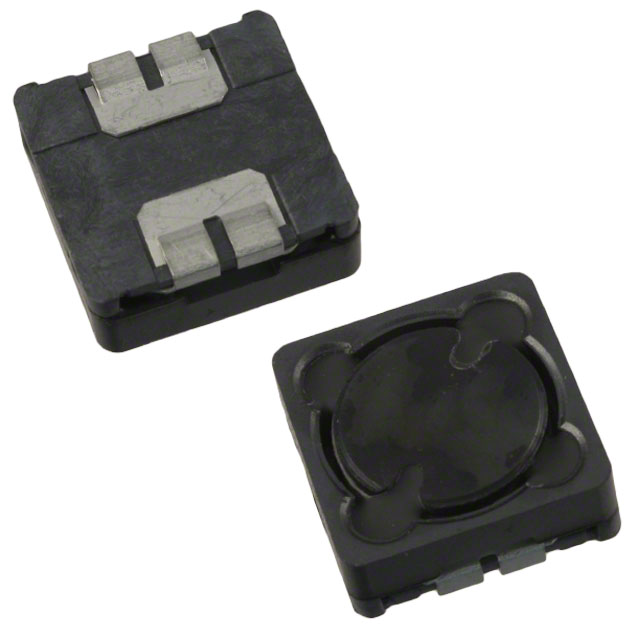

SRR1205-821KL
ActiveBourns Inc.
INDUCTOR,FERRITE,820UH,10+% TOL,10-% TOL,5050-CASE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRR1205-821KL
ActiveBourns Inc.
INDUCTOR,FERRITE,820UH,10+% TOL,10-% TOL,5050-CASE ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRR1205-821KL |
|---|---|
| Current - Saturation (Isat) | 570 mA |
| Current Rating (Amps) | 300 mA |
| DC Resistance (DCR) [Max] | 3 Ohm |
| Frequency - Self Resonant | 1 MHz |
| Height - Seated (Max) [Max] | 0.217 in |
| Height - Seated (Max) [Max] | 5.5 mm |
| Inductance | 820 µH |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 5, 796 kHz |
| Shielding | Shielded |
| Tolerance | 10 % |
| Type | Wirewound, Drum Core |
SRR1205 Series
| Part | Inductance | Tolerance | Current Rating (Amps) | Mounting Type | Package / Case | DC Resistance (DCR) | Current - Saturation (Isat) | Operating Temperature [Max] | Operating Temperature [Min] | Q @ Freq | Material - Core | Shielding | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency - Self Resonant | Type | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 330 µH | 10 % | 0.54 A | Surface Mount | Nonstandard | 1.34 Ohm | 880 mA | 125 °C | -40 °C | 7 796 kHz | Ferrite | Shielded | 0.217 in | 5.5 mm | 2 MHz | Drum Core Wirewound | |
Bourns Inc. | 820 µH | 10 % | 300 mA | Surface Mount | Nonstandard | 570 mA | 125 °C | -40 °C | 5 796 kHz | Ferrite | Shielded | 0.217 in | 5.5 mm | 1 MHz | Drum Core Wirewound | 3 Ohm | |
Bourns Inc. | 560 µH | 10 % | 400 mA | Surface Mount | Nonstandard | 650 mA | 125 °C | -40 °C | 6 796 kHz | Ferrite | Shielded | 0.217 in | 5.5 mm | 1.5 MHz | Drum Core Wirewound | 2.2 Ohm | |
Bourns Inc. | 220 µH | 10 % | 650 mA | Surface Mount | Nonstandard | 1.3 A | 125 °C | -40 °C | 9 796 kHz | Ferrite | Shielded | 0.217 in | 5.5 mm | 3 MHz | Drum Core Wirewound | 840 mOhm | |
Bourns Inc. | 18 µH | 20 % | 2.6 A | Surface Mount | Nonstandard | 82 mOhm | 4.8 A | 125 °C | -40 °C | 2.52 MHz 20 | Ferrite | Shielded | 0.217 in | 5.5 mm | 10 MHz | Drum Core Wirewound | |
Bourns Inc. | 75 µH | 15 % | 1.2 A | Surface Mount | Nonstandard | 330 mOhm | 2.2 A | 125 °C | -40 °C | 2.52 MHz 17 | Ferrite | Shielded | 0.217 in | 5.5 mm | 6 MHz | Drum Core Wirewound | |
Bourns Inc. | 39 µH | 20 % | 1.65 A | Surface Mount | Nonstandard | 3.2 A | 125 °C | -40 °C | 2.52 MHz 18 | Ferrite | Shielded | 0.217 in | 5.5 mm | 7.5 MHz | Drum Core Wirewound | 160 mOhm | |
Bourns Inc. | 3.3 µH | 20 % | 4.5 A | Surface Mount | Nonstandard | 9.2 A | 125 °C | -40 °C | 7.96 MHz 20 | Ferrite | Shielded | 0.217 in | 5.5 mm | 25 MHz | Drum Core Wirewound | 30 mOhm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SRR1205 Series
820 µH Shielded Drum Core, Wirewound Inductor 300 mA 3Ohm Max Nonstandard
