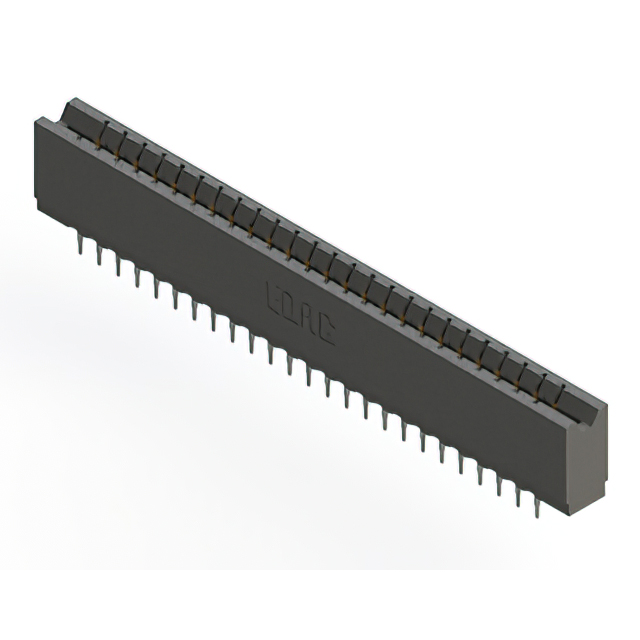

737-050-560-206

Active

EDAC Inc.

CONN EDGE DUAL FMALE 50POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	737-050-560-206

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever, Make Before Break
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	50
Number of Positions/Bay/Row [custom]	25
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

737-050 Series

Part	Termination Rows	Contact Type	Card Type	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Termination	Number of Positions/Bay/Row [custom]	Contact Material	Material - Insulation	Contact Finish	Number of Rows
EDAC Inc. 737-050-541-201	2	Cantilever	Non Specified - Dual Edge	50	Through Hole	0.76 Ám	30 Áin	Female	Dual	-40 °C	105 ░C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Press-Fit Wire Wrap	25	Copper Alloy	Polyester Thermoplastic	Gold	2
EDAC Inc. 737-050-522-206	2	Cantilever	Non Specified - Dual Edge	50	Through Hole	0.76 Ám	30 Áin	Female	Dual	-40 °C	105 ░C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Press-Fit	25	Copper Alloy	Polyester Thermoplastic	Gold	2
EDAC Inc. 737-050-560-201	2	Cantilever Make Before Break	Non Specified - Dual Edge	50	Through Hole	0.76 Ám	30 Áin	Female	Dual	-40 °C	105 ░C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Press-Fit	25	Copper Alloy	Polyester Thermoplastic	Gold	2
EDAC Inc. 737-050-560-206	2	Cantilever Make Before Break	Non Specified - Dual Edge	50	Through Hole	0.76 Ám	30 Áin	Female	Dual	-40 °C	105 ░C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Press-Fit	25	Copper Alloy	Polyester Thermoplastic	Gold	2
EDAC Inc. 737-050-522-201	2	Cantilever	Non Specified - Dual Edge	50	Through Hole	0.76 Ám	30 Áin	Female	Dual	-40 °C	105 ░C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Press-Fit	25	Copper Alloy	Polyester Thermoplastic	Gold	2
EDAC Inc. 737-050-540-206	2	Cantilever	Non Specified - Dual Edge	50	Through Hole	0.76 Ám	30 Áin	Female	Dual	-40 °C	105 ░C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Press-Fit Wire Wrap	25	Copper Alloy	Polyester Thermoplastic	Gold	2
EDAC Inc. 737-050-541-206	2	Cantilever	Non Specified - Dual Edge	50	Through Hole	0.76 Ám	30 Áin	Female	Dual	-40 °C	105 ░C	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Press-Fit Wire Wrap	25	Copper Alloy	Polyester Thermoplastic	Gold	2
