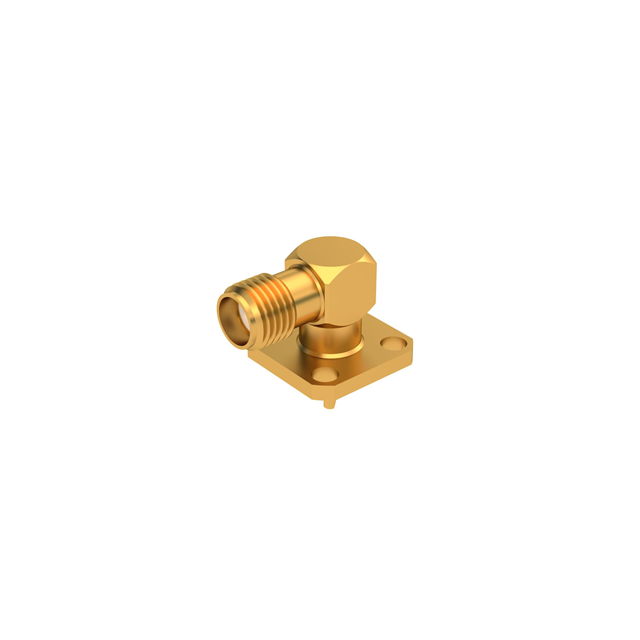

Specification	R125654000

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount, Right Angle
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	500 V

R12565 Series

Part	Center Contact Material	Shield Termination	Contact Termination	Housing Color	Fastening Type	Impedance	Connector Type	Mounting Feature	Frequency - Max	Mounting Type	Connector Style	Number of Ports	Features	Voltage Rating	Body Finish	Body Material	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Dielectric Material
Radiall USA, Inc. R125654450	Beryllium Copper	Solder	Solder	Gold	Threaded	50 Ohm	Female Socket Jack	Flange	18 GHz	Panel Mount Right Angle Through Hole	SMA	1	Extended Insulation	500 V	Gold	Stainless Steel	500 cycles	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R125654000	Beryllium Copper	Solder	Solder Cup	Gold	Threaded	50 Ohm	Female Socket Jack	Flange	18 GHz	Panel Mount Right Angle	SMA	1		500 V	Gold	Stainless Steel	500 cycles	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R125654451	Beryllium Copper	Solder	Solder		Threaded	50 Ohm	Female Socket Jack	Flange	18 GHz	Panel Mount Right Angle	SMA	1	Extended Insulation	500 V		Stainless Steel	500 cycles	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R125654000W	Beryllium Copper	Solder	Solder Cup	Gold	Threaded	50 Ohm	Female Socket Jack	Flange	18 GHz	Panel Mount Right Angle	SMA	1		500 V	Gold	Stainless Steel	500 cycles	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R125654450W	Beryllium Copper	Solder	Solder	Gold	Threaded	50 Ohm	Female Socket Jack	Flange	18 GHz	Panel Mount Right Angle Through Hole	SMA	1	Extended Insulation	500 V	Gold	Stainless Steel	500 cycles	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R125654451W	Beryllium Copper	Solder	Solder	Silver	Threaded	50 Ohm	Female Socket Jack	Flange	18 GHz	Panel Mount Right Angle Through Hole	SMA	1	Extended Insulation	500 V		Stainless Steel	500 cycles	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)
