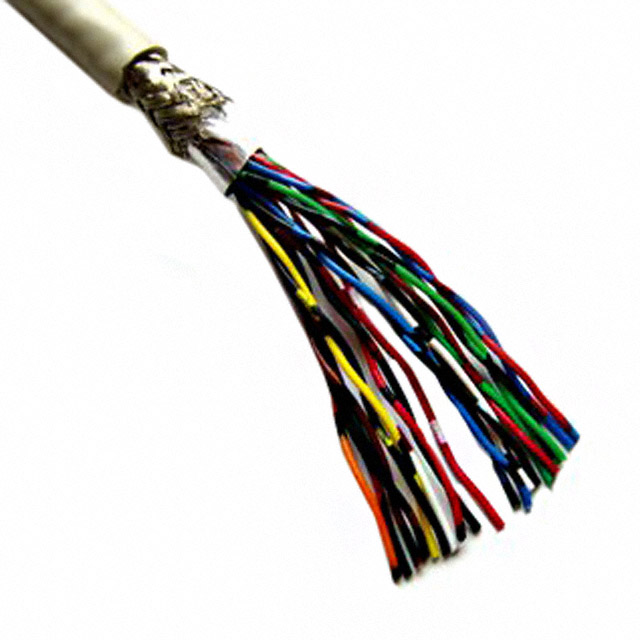

3600G/14 300

Active

3M (TC)

MULTI-PAIR 14COND 28AWG GRAY 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3600G/14 300

Active

3M (TC)

MULTI-PAIR 14COND 28AWG GRAY 50'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3600G/14 300

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.22 in
Jacket (Insulation) Diameter [diameter]	5.59 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.026 in
Jacket (Insulation) Thickness	0.66 mm
Jacket Color	Gray
Length	1.52 m, 91.4 m, 3.05 m, 300 mm, 15.24 m
Length	5 ', 300 ft, 10 ft, 1 ft
Length [x]	30.5 m, 7.62 m
Length [x]	100 ft, 25 ft, 50 ft
Number of Conductors	14
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Communication, Computer, Control
Voltage	30 V
Wire Gauge	28 AWG

3600G Series

Part	Conductor Insulation	Features	Conductor Material	Jacket (Insulation) Material	Shield Type	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Usage	Shield Coverage	Length	Length	Voltage	Wire Gauge	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Length [x]	Length [x]
3M (TC) 3600G/20SF	Poly-Vinyl Chloride (PVC)	Splice Free	Copper Tinned	Poly-Vinyl Chloride (PVC)	Braid Foil	Aluminum Copper Tinned	0.026 in	0.66 mm	Gray	Communication Computer Control	90 % 100 %	91.4 m	300 ft	30 V	28 AWG	Multi-Pair	0.24 in	6.1 mm	36 AWG	7	20
3M (TC) 3600G/26 300	Poly-Vinyl Chloride (PVC)		Copper Tinned	Poly-Vinyl Chloride (PVC)	Braid Foil	Aluminum Copper Tinned	0.026 in	0.66 mm	Gray	Communication Computer Control	90 % 100 %	91.4 m	300 ft	30 V	28 AWG	Multi-Pair	0.25 "	6.35 mm	36 AWG	7	26
3M (TC) 3600G/36	Poly-Vinyl Chloride (PVC)		Copper Tinned	Poly-Vinyl Chloride (PVC)	Braid Foil	Aluminum Copper Tinned	0.026 in	0.66 mm	Gray	Communication Computer Control	90 % 100 %			30 V	28 AWG	Multi-Pair			36 AWG	7	36	30.5 m	100 ft
3M (TC) 3600G/68SF	Poly-Vinyl Chloride (PVC)	Splice Free	Copper Tinned	Poly-Vinyl Chloride (PVC)	Braid Foil	Aluminum Copper Tinned	0.026 in	0.66 mm	Gray	Communication Computer Control	90 % 100 %	91.4 m	300 ft	30 V	28 AWG	Multi-Pair	0.36 "	9.14 mm	36 AWG	7	68
3M (TC) 3600G/14 300	Poly-Vinyl Chloride (PVC)		Copper Tinned	Poly-Vinyl Chloride (PVC)	Braid Foil	Aluminum Copper Tinned	0.026 in	0.66 mm	Gray	Communication Computer Control	90 % 100 %	1.52 m 3.05 m 15.24 m 91.4 m 300 mm	1 ft 5 ' 10 ft 300 ft	30 V	28 AWG	Multi-Pair	0.22 in	5.59 mm	36 AWG	7	14	7.62 m 30.5 m	25 ft 50 ft 100 ft
3M (TC) 3600G/50 100	Poly-Vinyl Chloride (PVC)		Copper Tinned	Poly-Vinyl Chloride (PVC)	Braid Foil	Aluminum Copper Tinned	0.026 in	0.66 mm	Gray	Communication Computer Control	90 % 100 %	3.05 m	10 ft	30 V	28 AWG	Multi-Pair	0.32 in	8.13 mm	36 AWG	7	50	30.5 m	100 ft
3M (TC) 3600G/14 300SF	Poly-Vinyl Chloride (PVC)	Splice Free	Copper Tinned	Poly-Vinyl Chloride (PVC)	Braid Foil	Aluminum Copper Tinned	0.026 in	0.66 mm	Gray	Communication Computer Control	90 % 100 %	91.4 m	300 ft	30 V	28 AWG	Multi-Pair	0.22 in	5.59 mm	36 AWG	7	14
3M (TC) 3600G/68 100	Poly-Vinyl Chloride (PVC)		Copper Tinned	Poly-Vinyl Chloride (PVC)	Braid Foil	Aluminum Copper Tinned	0.026 in	0.66 mm	Gray	Communication Computer Control	90 % 100 %			30 V	28 AWG	Multi-Pair	0.36 "	9.14 mm	36 AWG	7	68	30.5 m	100 ft
3M (TC) 3600G/20 100	Poly-Vinyl Chloride (PVC)		Copper Tinned	Poly-Vinyl Chloride (PVC)	Braid Foil	Aluminum Copper Tinned	0.026 in	0.66 mm	Gray	Communication Computer Control	90 % 100 %	1.52 m	5 '	30 V	28 AWG	Multi-Pair	0.24 in	6.1 mm	36 AWG	7	20	7.62 m 30.5 m	25 ft 100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 307.15
		1	$ 234.63
		1	$ 117.32
		1	$ 4.69
		1	$ 46.93
		1	$ 23.46
		10	$ 14.93
		10	$ 247.43
		10	$ 2.99
		10	$ 149.31
		10	$ 29.86
		10	$ 74.66
		25	$ 230.37
		25	$ 63.99
		25	$ 12.80
		25	$ 127.98
		25	$ 2.56
		25	$ 25.60
		50	$ 119.45
		50	$ 59.72
		50	$ 2.39
		50	$ 23.89
		50	$ 11.95
	Spool	1	$ 657.73
		3	$ 608.49
		5	$ 587.39
		7	$ 573.32
		10	$ 559.25

Description

General part information

3600G Series

14 (7 Pair Twisted) Conductor Multi-Pair Cable Gray 28 AWG Foil, Braid 50.00' (15.24m)
