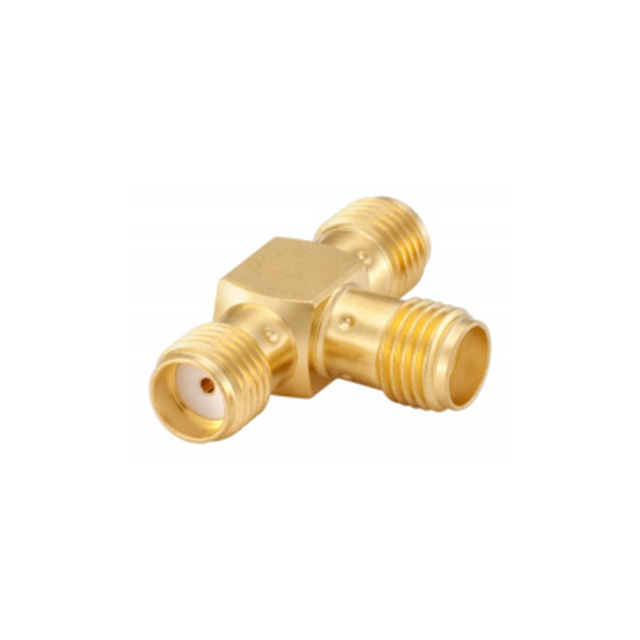

32K301-K00L5

Active

Rosenberger

ADAPT SMA JACK - SMA JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT SMA JACK - SMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	32K301-K00L5

Adapter Series	SMA to SMA, Dual
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	T-Shape

Part	Frequency - Max [Max]	Adapter Series	Dielectric Material	Mating Cycles	Body Material	Body Finish	Center Contact Material	Adapter Type	Mounting Type	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Convert To (Adapter End)	Convert From (Adapter End)	Center Gender	Style	Conversion Type
Rosenberger 32K301-K00L5	12.4 GHz	SMA to SMA Dual	Polytetrafluoroethylene (PTFE)	500	Beryllium Copper	Gold	Beryllium Copper	Jack to Jack	Free Hanging (In-Line)	Gold	-65 ░C	165 °C	50 Ohms	Female Socket (2) SMA Jack	Female Socket SMA Jack	Female to Female	T-Shape	Same Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket (2) 50 Ohms
