1-794629-0
ObsoleteTE Connectivity AMP Connectors

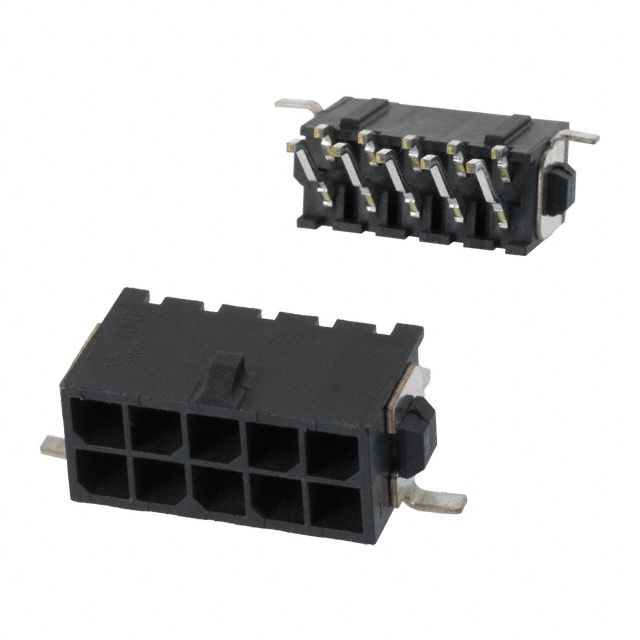

CONN HEADER SMD R/A 10POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-794629-0
ObsoleteTE Connectivity AMP Connectors
CONN HEADER SMD R/A 10POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-794629-0 | 794629 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold, Gold or Gold-Palladium |
| Contact Finish - Post | Tin-Lead | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Solder Retention | Solder Retention |
| Insulation Color | Black | Black |
| Insulation Height | 7.37 mm | 7.37 mm |
| Insulation Height | 0.29 in | 0.29 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Number of Positions | 10 | 4 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794629 Series
CONN HEADER SMD R/A 12POS 3MM
| Part | Number of Positions Loaded | Contact Shape | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Style | Current Rating (Amps) | Material Flammability Rating | Mounting Type | Connector Type | Applications | Insulation Color | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Row Spacing - Mating | Row Spacing - Mating | Termination | Contact Type | Voltage Rating | Number of Positions | Insulation Material | Contact Finish - Mating | Insulation Height | Insulation Height | Fastening Type | Pitch - Mating | Pitch - Mating | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-794629-2 | All | Square | Brass | 30 Áin | 0.76 Ám | Tin-Lead | Board to Cable/Wire | Varies by Wire Gauge | UL94 V-0 | Surface Mount, Right Angle | Header | General Purpose | Black | 2 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder | Male Pin | 250 VDC | 12 | Nylon, Polyamide (PA) | Gold | 7.37 mm | 0.29 in | Locking Ramp | 0.118 in | 3 mm | Solder Retention | |
TE Connectivity AMP Connectors 794629-8 | All | Square | Brass | 30 Áin | 0.76 Ám | Tin-Lead | Board to Cable/Wire | Varies by Wire Gauge | UL94 V-0 | Surface Mount, Right Angle | Header | General Purpose | Black | 2 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder | Male Pin | 250 VDC | 8 | Nylon, Polyamide (PA) | Gold | 7.37 mm | 0.29 in | Locking Ramp | 0.118 in | 3 mm | Solder Retention | |
TE Connectivity AMP Connectors 2-794629-4 | All | Square | Brass | 30 Áin | 0.76 Ám | Tin-Lead | Board to Cable/Wire | Varies by Wire Gauge | UL94 V-0 | Surface Mount, Right Angle | Header | General Purpose | Black | 2 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder | Male Pin | 250 VDC | 24 | Nylon, Polyamide (PA) | Gold | 7.37 mm | 0.29 in | Locking Ramp | 0.118 in | 3 mm | Solder Retention | |
TE Connectivity AMP Connectors 5-794629-4 | All | Square | Brass | 30 Áin | 0.76 Ám | Tin | Board to Cable/Wire | Varies by Wire Gauge | UL94 V-0 | Surface Mount, Right Angle | Header | General Purpose | Black | 2 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder | Male Pin | 250 VDC | 24 | Nylon, Polyamide (PA) | Gold | 7.37 mm | 0.29 in | Locking Ramp | 0.118 in | 3 mm | Solder Retention | |
TE Connectivity AMP Connectors 1-794629-0 | All | Square | Brass | 30 Áin | 0.76 Ám | Tin-Lead | Board to Cable/Wire | Varies by Wire Gauge | UL94 V-0 | Surface Mount, Right Angle | Header | General Purpose | Black | 2 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder | Male Pin | 250 VDC | 10 | Nylon, Polyamide (PA) | Gold | 7.37 mm | 0.29 in | Locking Ramp | 0.118 in | 3 mm | Solder Retention | |
TE Connectivity AMP Connectors 3-794629-8 | All | Square | Brass | 30 Áin | 0.76 Ám | Tin | Board to Cable/Wire | Varies by Wire Gauge | UL94 V-0 | Surface Mount, Right Angle | Header | General Purpose | Black | 2 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder | Male Pin | 250 VDC | 8 | Nylon, Polyamide (PA) | Gold | 7.37 mm | 0.29 in | Locking Ramp | 0.118 in | 3 mm | Solder Retention | |
TE Connectivity AMP Connectors 2-794629-0 | All | Square | Brass | 30 Áin | 0.76 Ám | Tin-Lead | Board to Cable/Wire | Varies by Wire Gauge | UL94 V-0 | Surface Mount, Right Angle | Header | General Purpose | Black | 2 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder | Male Pin | 250 VDC | 20 | Nylon, Polyamide (PA) | Gold | 7.37 mm | 0.29 in | Locking Ramp | 0.118 in | 3 mm | Solder Retention | |
TE Connectivity AMP Connectors 4-794629-6 | All | Square | Brass | 30 Áin | 0.76 Ám | Tin | Board to Cable/Wire | Varies by Wire Gauge | UL94 V-0 | Surface Mount, Right Angle | Header | General Purpose | Black | 2 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder | Male Pin | 250 VDC | Nylon, Polyamide (PA) | Gold or Gold-Palladium | 7.37 mm | 0.29 in | Locking Ramp | 0.118 in | 3 mm | Solder Retention | 16 | |
TE Connectivity AMP Connectors 5-794629-2 | All | Square | Brass | 30 Áin | 0.76 Ám | Tin | Board to Cable/Wire | Varies by Wire Gauge | UL94 V-0 | Surface Mount, Right Angle | Header | General Purpose | Black | 2 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder | Male Pin | 250 VDC | 22 positions | Nylon, Polyamide (PA) | Gold | 7.37 mm | 0.29 in | Locking Ramp | 0.118 in | 3 mm | Solder Retention | |
TE Connectivity AMP Connectors 3-794629-4 | All | Square | Brass | 30 Áin | 0.76 Ám | Tin | Board to Cable/Wire | Varies by Wire Gauge | UL94 V-0 | Surface Mount, Right Angle | Header | General Purpose | Black | 2 | -40 °C | 105 ░C | Shrouded - 4 Wall | 2.54 µm | 100 µin | 3 mm | 0.118 in | Solder | Male Pin | 250 VDC | 4 | Nylon, Polyamide (PA) | Gold | 7.37 mm | 0.29 in | Locking Ramp | 0.118 in | 3 mm | Solder Retention |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
794629 Series
Connector Header Surface Mount, Right Angle 10 position 0.118" (3.00mm)
