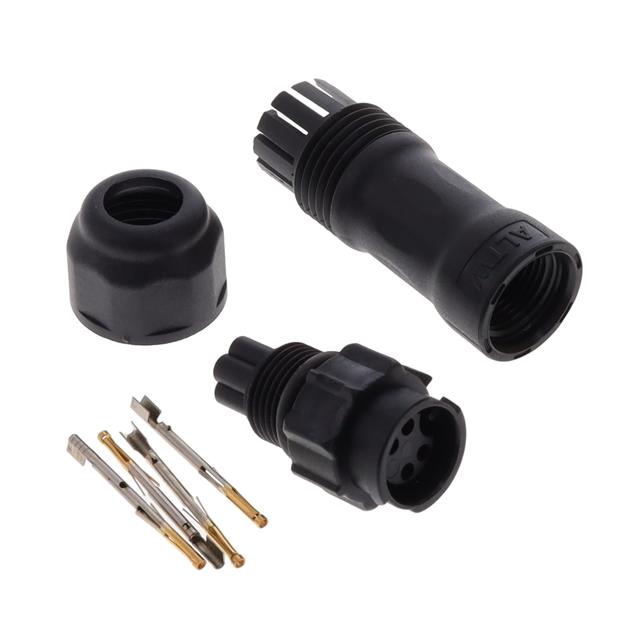

BD-04BMFA-QL8MP0

Active

Amphenol LTW

X-LOK, STANDARD SIZE, 5A, 04 PIN

Deep-Dive with AI

Search across all available documentation for this part.

BD-04BMFA-QL8MP0

Active

Amphenol LTW

X-LOK, STANDARD SIZE, 5A, 04 PIN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BD-04BMFA-QL8MP0

Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VAC

BD-04BMFA Series

Part	Primary Material	Color	Termination	Contact Material	Contact Finish - Mating	Connector Type	Voltage Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Orientation	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Shell Material	Ingress Protection	Fastening Type	Mounting Type	Shell Size - Insert	Material Flammability Rating	Number of Positions	Shielding	Features	Backshell Material, Plating	Housing Color	Contact Shape	Type	Note	Contact Type
Amphenol LTW BD-04BMFA-QL8SP0	Plastic	Black	Crimp	Copper Alloy	Gold	Female Sockets Plug	300 VAC	5 A	-40 °C	105 ░C	Polyamide (PA) Nylon Glass Filled	Keyed	0.236 in	6 mm	5 mm	0.197 in	Glass Filled Nylon Polyamide (PA)	IP68 - Dust Tight Waterproof	Push-Pull	Free Hanging (In-Line)	B	UL94 V-0	4	Unshielded	Backshell
Amphenol LTW BD-04BMFA-LL6001	Plastic	Black		Copper Alloy	Gold	Receptacle Female Sockets		5 A	-40 °C	105 ░C	Polyamide (PA) Nylon Glass Filled	Keyed					Glass Filled Nylon Polyamide (PA)	IP66	Bayonet Lock	Free Hanging (In-Line)	B		4	Unshielded	Backshell Coupling Nut	Glass Filled Nylon Polyamide (PA)
Amphenol LTW BD-04BMFA-QL8LN0	Plastic					Plug Housing			-40 °C	105 ░C	Thermoplastic	Keyed						IP68 - Dust Tight Waterproof	Bayonet Lock	Free Hanging (In-Line)	B		4	Unshielded	Backshell		Black	Circular	For Female Sockets	Contacts Not Included	Crimp
Amphenol LTW BD-04BMFA-QL8MP0	Plastic	Black	Crimp	Copper Alloy	Gold	Female Sockets Plug	300 VAC	5 A	-40 °C	105 ░C	Polyamide (PA) Nylon Glass Filled	Keyed	0.315 in	8 mm	6 mm	0.236 in	Glass Filled Nylon Polyamide (PA)	IP68 - Dust Tight Waterproof	Push-Pull	Free Hanging (In-Line)	B	UL94 V-0	4	Unshielded	Backshell Strain Relief
Amphenol LTW BD-04BMFA-LL7001	Plastic	Black		Copper Alloy	Gold	Receptacle Female Sockets		5 A	-40 °C	105 ░C	Polyamide (PA) Nylon Glass Filled	Keyed					Glass Filled Nylon Polyamide (PA)	IP67 - Dust Tight Waterproof	Bayonet Lock	Free Hanging (In-Line)	B		4	Unshielded	Backshell Coupling Nut	Glass Filled Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.00
		10	$ 7.23
		100	$ 6.33
		1000	$ 4.67

Description

General part information

BD-04BMFA Series

4 (Data) Position Circular Connector Plug, Female Sockets Crimp
