HDTB-6

Active

c3controls

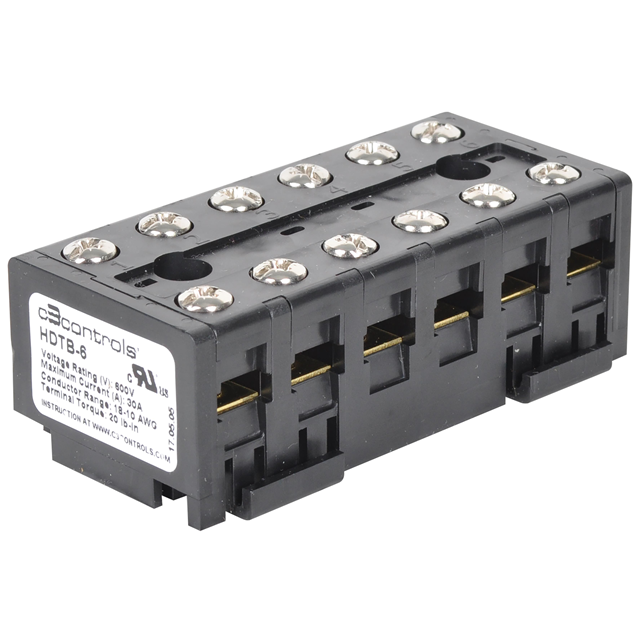

HIGH DNSTY TB - 6 POINT ASSEMBLY

Search across all available documentation for this part.

Active

c3controls

HIGH DNSTY TB - 6 POINT ASSEMBLY

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HDTB-6	HDTB Series

Barrier Type	Enclosed	Enclosed
Bottom Termination	Closed	Closed
Color	Black	Black, White
Current Rating (Amps)	30 A	30 A
For Use With/Related Products	-	Barrier Blocks
Legend	-	Blank
Mounting Type	DIN Rail, Chassis, Panel	DIN Rail, Chassis, Panel
Number of Circuits	6	6
Number of Rows	2	2
Number of Wire Entries	12	12
Terminal Block Type	Barrier Block	Barrier Block
Top Termination	Screws	Screws
Type	-	Snap In, Label
Voltage Rating	600 V	600 V
Wire Gauge [Max]	18 AWG	18 AWG
Wire Gauge [Min]	10 AWG	10 AWG

HIGH DNSTY TB - 6 POINT ASSEMBLY

Part	Wire Gauge [Min]	Wire Gauge [Max]	Bottom Termination	Mounting Type	Terminal Block Type	Current Rating (Amps)	Number of Circuits	Color	Number of Wire Entries	Voltage Rating	Top Termination	Number of Rows	Barrier Type	Type	Legend	For Use With/Related Products
c3controls HDTB-6	10 AWG	18 AWG	Closed	Chassis, DIN Rail, Panel	Barrier Block	30 A	6	Black	12	600 V	Screws	2	Enclosed
c3controls HDTB-M4								White						Label, Snap In	Blank	Barrier Blocks

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.91

General part information

6 Circuit Barrier Block Connector Screws
