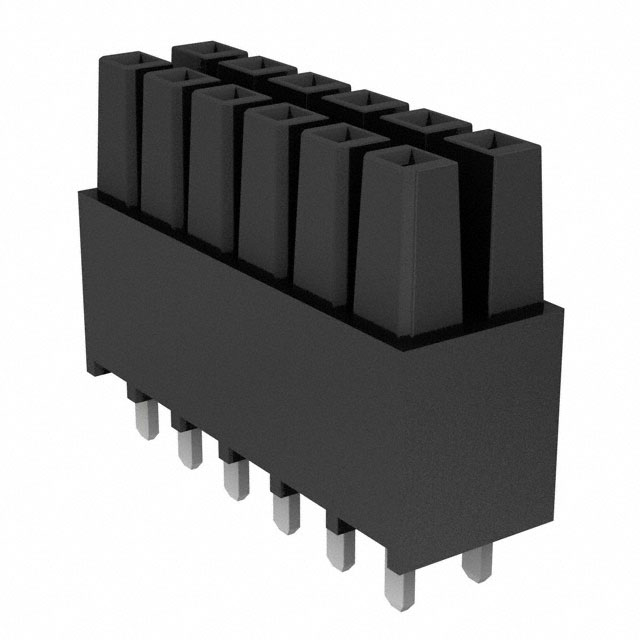

IPS1-106-01-S-D

Active

Samtec Inc.

CONN RCPT 12POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIPS1 Series Other Related Documents 01 IPS1 Datasheet +1

IPS1-106-01-S-D

Active

Samtec Inc.

CONN RCPT 12POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsIPS1 Series Other Related Documents 01 IPS1 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPS1-106-01-S-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	775 VAC, 1095 VDC

IPS1-106 Series

Part	Contact Material	Contact Finish - Mating	Number of Positions	Insulation Height	Insulation Height	Contact Type	Contact Shape	Insulation Material	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Number of Positions Loaded	Voltage Rating	Mounting Type	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features
Samtec Inc. IPS1-106-01-SM-D	Phosphor Bronze	Gold	12	0.335 "	8.51 mm	Female Socket	Square	Liquid Crystal Polymer (LCP)	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	Tin	All	775 VAC 1095 VDC	Through Hole	2	2.54 mm	0.1 in	Push-Pull	Receptacle	-55 °C	125 °C	Solder
Samtec Inc. IPS1-106-01-L-D-VS-K-TR	Phosphor Bronze	Gold	12	0.335 "	8.51 mm	Female Socket	Square	Liquid Crystal Polymer (LCP)	Black	0.1 in	2.54 mm			Tin	All	775 VAC 1095 VDC	Surface Mount	2	2.54 mm	0.1 in	Push-Pull	Receptacle	-55 °C	125 °C	Solder	10 çin	0.25 çm	Pick and Place
Samtec Inc. IPS1-106-01-S-D-VS-LC	Phosphor Bronze	Gold	12	0.335 "	8.51 mm	Female Socket	Square	Liquid Crystal Polymer (LCP)	Black	0.1 in	2.54 mm			Tin	All	775 VAC 1095 VDC	Surface Mount	2	2.54 mm	0.1 in	Push-Pull	Receptacle	-55 °C	125 °C	Solder	30 Áin	0.76 Ám
Samtec Inc. IPS1-106-01-L-D-VS	Phosphor Bronze	Gold	12	0.335 "	8.51 mm	Female Socket	Square	Liquid Crystal Polymer (LCP)	Black	0.1 in	2.54 mm			Tin	All	775 VAC 1095 VDC	Surface Mount	2	2.54 mm	0.1 in	Push-Pull	Receptacle	-55 °C	125 °C	Solder	10 çin	0.25 çm
Samtec Inc. IPS1-106-01-L-D-RA	Phosphor Bronze	Gold	12	0.195 in	4.95 mm	Female Socket	Square	Liquid Crystal Polymer (LCP)	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	Tin	All	775 VAC 1095 VDC	Through Hole Right Angle	2	2.54 mm	0.1 in	Push-Pull	Receptacle	-55 °C	125 °C	Solder	10 çin	0.25 çm
Samtec Inc. IPS1-106-01-S-D	Phosphor Bronze	Gold	12	0.335 "	8.51 mm	Female Socket	Square	Liquid Crystal Polymer (LCP)	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	Tin	All	775 VAC 1095 VDC	Through Hole	2	2.54 mm	0.1 in	Push-Pull	Receptacle	-55 °C	125 °C	Solder	30 Áin	0.76 Ám
Samtec Inc. IPS1-106-01-L-D-VS-LC-K-TR	Phosphor Bronze	Gold	12	0.335 "	8.51 mm	Female Socket	Square	Liquid Crystal Polymer (LCP)	Black	0.1 in	2.54 mm			Tin	All	775 VAC 1095 VDC	Surface Mount	2	2.54 mm	0.1 in	Push-Pull	Receptacle	-55 °C	125 °C	Solder	10 çin	0.25 çm	Board Lock Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.98
		25	$ 3.60
		50	$ 3.34
		100	$ 3.18
		500	$ 2.96

Description

General part information

IPS1-106 Series

12 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

IPS1 Series Other Related Documents 01

IPS1 Datasheet

Datasheet
