MCP16331T-E/MNYVAO
ActiveSWITCHING REGULATOR, CURRENT-MODE, 1.2A, 550KHZ SWITCHING FREQ-MAX, PDSO8
Deep-Dive with AI
Search across all available documentation for this part.
MCP16331T-E/MNYVAO
ActiveSWITCHING REGULATOR, CURRENT-MODE, 1.2A, 550KHZ SWITCHING FREQ-MAX, PDSO8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MCP16331T-E/MNYVAO | MCP16331 Series |
|---|---|---|
| Current - Output | 500 mA | 500 mA |
| Frequency - Switching | 500 kHz | 500 kHz |
| Function | Step-Down | Step-Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |

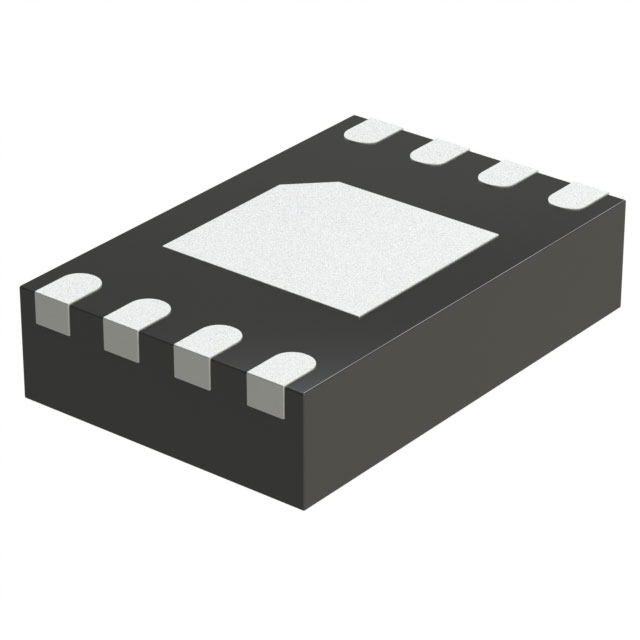

| Package / Case | 8-WFDFN Exposed Pad | SOT-23-6, 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) | SOT-23-6, 8-TDFN (2x3) |
| Synchronous Rectifier | False | False |
| Topology | Buck | Buck |
| Voltage - Input (Max) [Max] | 50 V | 50 V |
| Voltage - Input (Min) [Min] | 4.4 V | 4.4 V |
| Voltage - Output (Max) [Max] | 24 V | 24 V |
| Voltage - Output (Min/Fixed) | 2 V | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Tape & Reel (TR) | 3300 | $ 1.72 | |
| Microchip Direct | T/R | 1 | $ 2.02 | |
| 25 | $ 1.83 | |||
| 100 | $ 1.67 | |||
| 1000 | $ 1.53 | |||
| 5000 | $ 1.46 | |||
| Microchip Technology Inc | Reel | 1 | $ 2.02 | |
| 25 | $ 1.83 | |||
| 100 | $ 1.67 | |||
| 1000 | $ 1.53 | |||
| 5000 | $ 1.46 | |||
MCP16331 Series
50V/1A, Non-Synchronous Buck Regulator
| Part | Synchronous Rectifier | Frequency - Switching | Voltage - Input (Min) [Min] | Mounting Type | Voltage - Output (Min/Fixed) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Supplier Device Package | Voltage - Output (Max) [Max] | Output Type | Topology | Output Configuration | Function | Number of Outputs | Current - Output | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology MCP16331T-E/CH | 500 kHz | 4.4 V | Surface Mount | 2 V | 125 ¯C | -40 °C | 50 V | SOT-23-6 | 24 V | Adjustable | Buck | Positive | Step-Down | 1 | 500 mA | SOT-23-6 | |
Microchip Technology MCP16331T-E/MNYVAO | 500 kHz | 4.4 V | Surface Mount | 2 V | 125 °C | -40 °C | 50 V | 8-TDFN (2x3) | 24 V | Adjustable | Buck | Positive | Step-Down | 1 | 500 mA | 8-WFDFN Exposed Pad |
Description
General part information
MCP16331 Series
The MCP16331 is a highly integrated, high-efficiency, fixed frequency, step-down DC-DC converter in a popular 6-pin SOT-23 or 8-pin TDFN 2x3 package that operates from input voltage sources up to 50V. Integrated features include a high side switch, fixed frequency Peak Current Mode Control, internal compensation, peak current limit and overtemperature protection. Minimal external components are necessary to develop a complete step-down DC-DC converter power supply.
