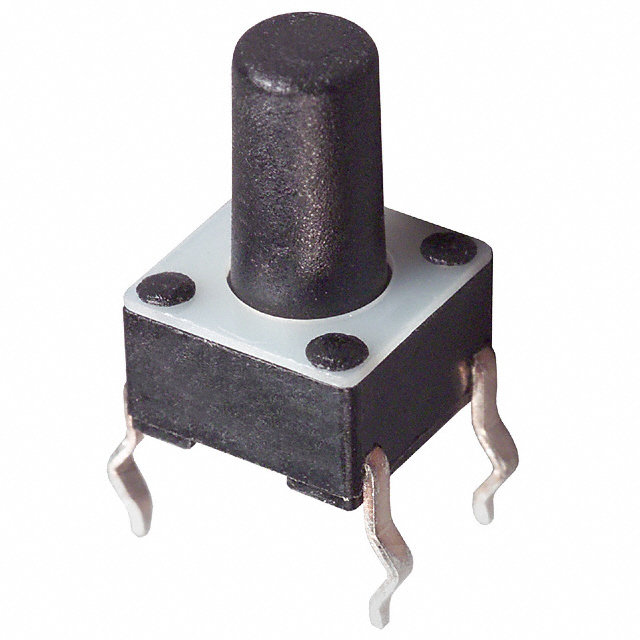

FSM8J

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	FSM8J

Actuator Height off PCB, Vertical	9.5 mm
Actuator Material	Acetal
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Actuator Orientation	Illumination	Actuator Height off PCB, Vertical	Mechanical Life	Outline [y]	Outline [x]	Switch Travel	Switch Function	Circuit	Contact Rating @ Voltage	Mounting Type	Actuator Type	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style
TE Connectivity Raychem Cable Protection FSM8JSMASTR	Top Actuated	Non-Illuminated	9.5 mm	1000000 Cycles	6 mm	6 mm	0.25 mm	Off-Mom	SPST-NO	0.05 A 24 VDC	Surface Mount	Standard	Nylon Polyamide (PA)	-40 °C	105 ░C	Gull Wing
TE Connectivity Raychem Cable Protection FSM8J	Top Actuated	Non-Illuminated	9.5 mm	100000 Cycles	6 mm	6 mm	0.25 mm	Off-Mom	SPST-NO	0.05 A 24 VDC	Through Hole	Standard	Acetal	-20 C	70 °C	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
