3-101-400

Active

SCHURTER Inc.

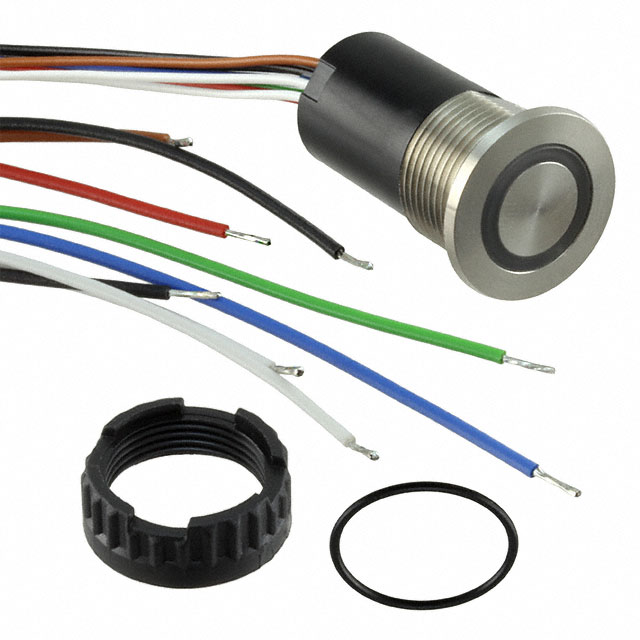

SWITCH PUSHBUTTON SPST 100MA 42V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-101-400

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPST 100MA 42V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.29

Description

General part information

3-101 Series

Pushbutton Switch SPST Capacitive, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-101-400	3-101 Series

Accomodates a Fuse	-	False
Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Round, Button, Flush
Approval Agency	-	ENEC, CSA, CCC, UL, VDE, CQC, cURus
Circuit	SPST	DPST, SPST, SPST-NO
Color - Actuator/Cap	Silver	Clear, Silver
Connector Style	-	IEC 320-2-2/F, IEC 320-C14
Connector Type	-	Receptacle, Female Sockets, Male Blades, Receptacle
Current Rating - Appliance Inlet	-	10 A
Current Rating - Filter	-	6 - 10 A
Current Rating (Amps)	100 mA	16 - 100 A
Electrical Life	-	20000 Steps
Features	-	Finger Guide, Ceramic Actuator, Light Pipe, V-Lock Notch, Shielded
Filter Type	-	Unfiltered - Commercial, Filtered (EMI, RFI) - Commercial
Illumination Type, Color	Red, LED, Blue, Green	White, LED, Green/Red, Blue, Red, Green
Illumination Voltage (Nominal)	-	24 V
Illumination Voltage (Nominal) [Max]	28 VDC	28 VDC
Illumination Voltage (Nominal) [Min]	5 VDC	5 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP64 - Dust Tight, Water Resistant, IP67 - Dust Tight, Waterproof, IP40
Material Flammability Rating	-	UL94 V-0
Mechanical Life	-	100000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front, Panel Mount, Snap-In, Flange
Operating Temperature [Max]	60 °C	60 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -20 C
Panel Cutout Dimensions	-	29 - 32.5 mm
Panel Cutout Dimensions	-	21.5 - 24.9 mm
Panel Cutout Dimensions [diameter]	16.1 mm	16.1 - 22.1 mm
Panel Thickness	-	2 - 8 mm
Panel Thickness	-	0.079 - 0.315 in
Switch Function	Off-On	Off-On, Off-Mom
Termination	-	0.25 in
Termination	-	6.3 mm
Termination	-	Quick Connect
Termination Style	Wire Leads	Quick Connect - 0.187" (4.7mm), Wire Leads
Type	Capacitive, Illuminated	Anti-Vandal, Illuminated, Capacitive
Voltage Rating - AC	42 V	42 - 250 V
Voltage Rating - Appliance Inlet	-	250 VAC
Voltage Rating - DC	60 VDC	30 - 60 V
