3-101-009

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPST 16A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-101-009

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPST 16A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-101-009	3-101 Series

Accomodates a Fuse	-	False
Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button, Flush
Approval Agency	-	ENEC, CSA, CCC, UL, VDE, CQC, cURus
Circuit	SPST	DPST, SPST, SPST-NO
Color - Actuator/Cap	Clear	Clear, Silver
Connector Style	-	IEC 320-2-2/F, IEC 320-C14
Connector Type	-	Receptacle, Female Sockets, Male Blades, Receptacle
Current Rating - Appliance Inlet	-	10 A
Current Rating - Filter	-	6 - 10 A
Current Rating (Amps)	16 A	16 - 100 A
Electrical Life	20000 Steps	20000 Steps
Features	-	Finger Guide, Ceramic Actuator, Light Pipe, V-Lock Notch, Shielded
Filter Type	-	Unfiltered - Commercial, Filtered (EMI, RFI) - Commercial
Illumination Type, Color	LED, Blue	White, LED, Green/Red, Blue, Red, Green
Illumination Voltage (Nominal)	24 V	24 V
Illumination Voltage (Nominal)	-	28 VDC
Illumination Voltage (Nominal)	-	5 VDC
Ingress Protection	IP64 - Dust Tight, Water Resistant	IP64 - Dust Tight, Water Resistant, IP67 - Dust Tight, Waterproof, IP40
Material Flammability Rating	-	UL94 V-0
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front, Panel Mount, Snap-In, Flange
Operating Temperature [Max]	85 °C	60 - 85 °C
Operating Temperature [Min]	-20 C	-40 - -20 C
Panel Cutout Dimensions	-	29 - 32.5 mm
Panel Cutout Dimensions	-	21.5 - 24.9 mm
Panel Cutout Dimensions [diameter]	19.1 mm	16.1 - 22.1 mm
Panel Thickness	-	2 - 8 mm
Panel Thickness	-	0.079 - 0.315 in
Switch Function	Off-On	Off-On, Off-Mom
Termination	-	0.25 in
Termination	-	6.3 mm
Termination	-	Quick Connect
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm), Wire Leads
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated, Capacitive
Voltage Rating - AC	250 V	42 - 250 V
Voltage Rating - Appliance Inlet	-	250 VAC
Voltage Rating - DC	30 V	30 - 60 V

3-101 Series

SWITCH PUSHBUTTON DPST 16A 250V

Part	Type	Voltage Rating - DC	Termination Style	Panel Cutout Dimensions [diameter]	Switch Function	Actuator Type	Illumination Voltage (Nominal)	Actuator Marking	Current Rating (Amps)	Voltage Rating - AC	Mechanical Life	Color - Actuator/Cap	Ingress Protection	Mounting Type	Circuit	Illumination Type, Color	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]	Features	Current Rating - Appliance Inlet	Connector Style	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Filter Type	Approval Agency	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material Flammability Rating
SCHURTER Inc. 3-101-041	Anti-Vandal, Illuminated	30 V	Quick Connect - 0.187" (4.7mm)	22.1 mm	Off-On	Button, Round	24 V	No Marking	16 A	250 V	100000 Cycles	Clear	IP64 - Dust Tight, Water Resistant	Panel Mount, Front	DPST	LED, White	20000 Steps	85 °C	-20 C
SCHURTER Inc. 3-101-398	Capacitive, Illuminated	60 VDC	Wire Leads	16.1 mm	Off-On	Button, Flush, Round		No Marking	100 mA	42 V		Clear	IP67 - Dust Tight, Waterproof	Panel Mount, Front	SPST	Green/Red, LED		60 °C	-40 °C	28 VDC	5 VDC	Ceramic Actuator, Finger Guide
SCHURTER Inc. 3-101-001	Anti-Vandal	30 V	Quick Connect - 0.187" (4.7mm)	22.1 mm	Off-On	Button, Round		No Marking	16 A	250 V	100000 Cycles	Silver	IP64 - Dust Tight, Water Resistant	Panel Mount, Front	SPST		20000 Steps	85 °C	-20 C
SCHURTER Inc. 3-101-018	Anti-Vandal, Illuminated	30 V	Quick Connect - 0.187" (4.7mm)	22.1 mm	Off-On	Button, Round	24 V	No Marking	16 A	250 V	100000 Cycles	Silver	IP64 - Dust Tight, Water Resistant	Panel Mount, Front	DPST	Blue, LED	20000 Steps	85 °C	-20 C
SCHURTER Inc. 3-101-686														Panel Mount, Snap-In								Light Pipe, V-Lock Notch	10 A	IEC 320-2-2/F	2 mm	0.079 in	250 VAC	Unfiltered - Commercial	CCC, CSA, ENEC, UL, VDE	Receptacle, Female Sockets	32.5 mm	24.9 mm	UL94 V-0
SCHURTER Inc. 3-101-421	Capacitive, Illuminated	60 VDC	Wire Leads	19.1 mm	Off-On	Button, Flush, Round		No Marking	100 mA	42 V		Silver	IP67 - Dust Tight, Waterproof	Panel Mount, Front	SPST	Green/Red, LED		60 °C	-40 °C	28 VDC	5 VDC
SCHURTER Inc. 3-101-416	Capacitive, Illuminated	60 VDC	Wire Leads	19.1 mm	Off-On	Button, Flush, Round		No Marking	100 mA	42 V		Clear	IP67 - Dust Tight, Waterproof	Panel Mount, Front	SPST	Green/Red, LED		60 °C	-40 °C	28 VDC	5 VDC	Ceramic Actuator
SCHURTER Inc. 3-101-009	Anti-Vandal, Illuminated	30 V	Quick Connect - 0.187" (4.7mm)	19.1 mm	Off-On	Button, Round	24 V	No Marking	16 A	250 V	100000 Cycles	Clear	IP64 - Dust Tight, Water Resistant	Panel Mount, Front	SPST	Blue, LED	20000 Steps	85 °C	-20 C
SCHURTER Inc. 3-101-397	Capacitive, Illuminated	60 VDC	Wire Leads	16.1 mm	Off-Mom	Button, Flush, Round		No Marking	100 mA	42 V		Clear	IP67 - Dust Tight, Waterproof	Panel Mount, Front	SPST-NO	Blue, Green, LED, Red		60 °C	-40 °C	28 VDC	5 VDC	Ceramic Actuator, Finger Guide
SCHURTER Inc. 3-101-024	Anti-Vandal, Illuminated	30 V	Quick Connect - 0.187" (4.7mm)	19.1 mm	Off-On	Button, Round	24 V	No Marking	16 A	250 V	100000 Cycles	Clear	IP64 - Dust Tight, Water Resistant	Panel Mount, Front	DPST	Green, LED	20000 Steps	85 °C	-20 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.48
		10	$ 62.51
		30	$ 58.23
		50	$ 56.34
		100	$ 53.87

Description

General part information

3-101 Series

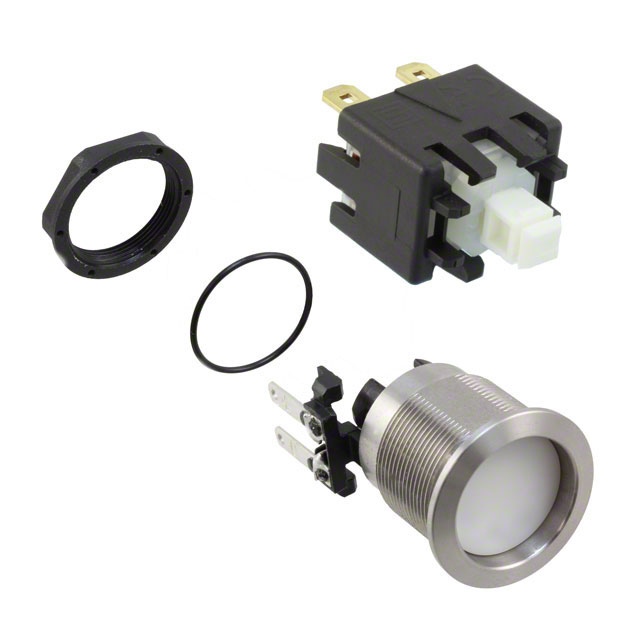

Pushbutton Switch SPST Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources
