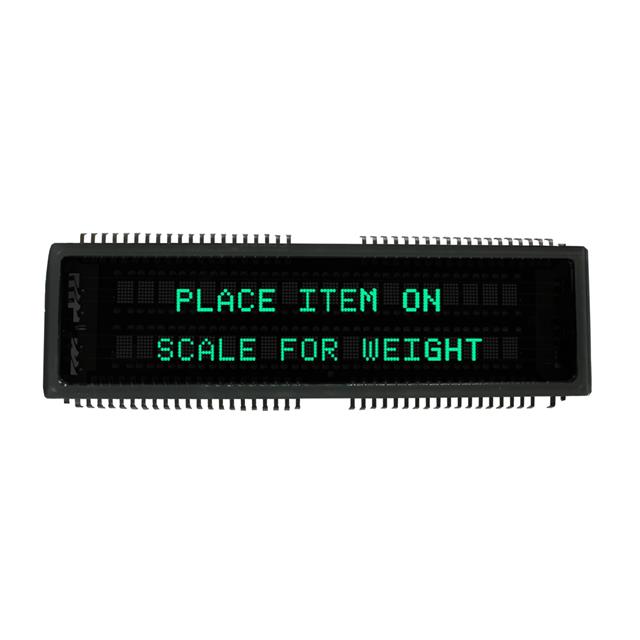

D0220SD-35-4002FN
ActiveNewhaven Display Intl
DISPLAY VFD DOT MAT 2X20 5MM
D0220SD-35-4002FN
ActiveNewhaven Display Intl
DISPLAY VFD DOT MAT 2X20 5MM
Description
General part information
D0220SD Series
Vacuum Fluorescent Display (VFD) 20 x 2 Character 125.00mm x 35.00mm x 7.80mm
Technical Specifications
Parameters and characteristics for this part
| Specification | D0220SD-35-4002FN |
|---|---|
| Character Height | 5 mm |
| Character Width | 3.5 mm |
| Display Columns | 20 |
| Display Rows | 2 |
| Display Type | Character |
| Format Height (Dots) | 7 Dots |
| Format Width (Dots) | 5 Dots |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Outline Height | 7.8 mm |
| Outline Length | 125 mm |
| Outline Width | 35 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
