MCX-P-C-H-ST-CA2

Active

Samtec Inc.

50 OHM MCX JACK OR PLUG, CABLE T

Search across all available documentation for this part.

Active

Samtec Inc.

50 OHM MCX JACK OR PLUG, CABLE T

Technical Specifications

Parameters and characteristics for this part

Specification	MCX-P-C-H-ST-CA2

Body Material	Brass
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	2 Ferrules, 1 Connector, 1 Contact, 1 Insulator
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Center Contact Material	Fastening Type	Mounting Type	Dielectric Material	Shield Termination	Cable Group	Connector Style	Includes	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Center Contact Plating	Connector Type	Contact Termination	Housing Color	Impedance	Number of Ports	Body Material
Samtec Inc. MCX-P-C-H-ST-CA2	Brass	Snap-On	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	RG-178	MCX	1 Connector 1 Contact 1 Insulator 2 Ferrules	6000 MHz	125 °C	-65 ░C	335 V	Gold	Male Pin Plug	Solder	Gold	50 Ohms	1	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

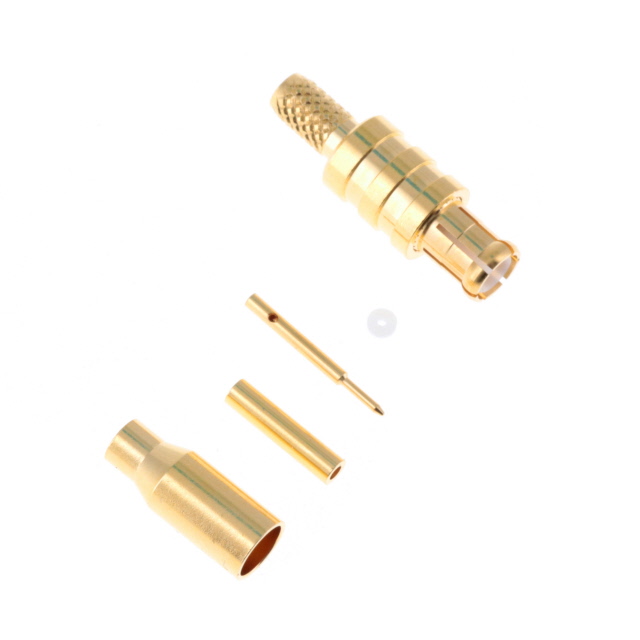

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
