31-262.025

Active

EAO

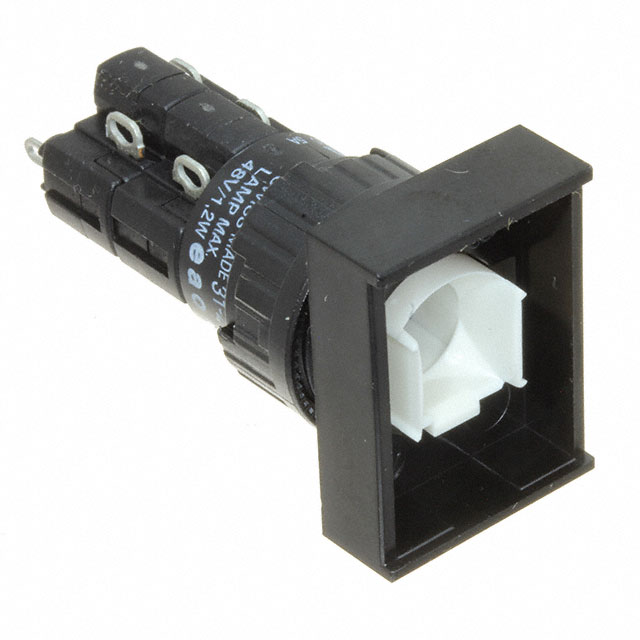

PUSHBUTTON SWITCH, 31 SERIES, 16 MM, DPST-NO, DPST-NC, MAINTAINED, RECTANGULAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

31-262.025

Active

EAO

PUSHBUTTON SWITCH, 31 SERIES, 16 MM, DPST-NO, DPST-NC, MAINTAINED, RECTANGULAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	31-262.025

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	4PST-2NO/2NC
Current Rating (Amps)	5 A
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Off, Off-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V

31-262 Series

PUSHBUTTON SWITCH, 31 SERIES, 16 MM, DPST-NO, DPST-NC, MAINTAINED, RECTANGULAR

Part	Ingress Protection	Actuator Type	Circuit	Actuator Marking	Termination Style	Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Mounting Type	Mechanical Life
EAO 31-262.025	IP40	Rectangular, Button (Not Included)	4PST-2NO/2NC	No Marking	Solder Lug	Standard	250 V	16 mm	5 A	55 °C	-25 °C	Off-On, On-Off	Panel Mount, Front	1000000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.05
		10	$ 52.89
		100	$ 44.18
Newark	Each	1	$ 59.46
		5	$ 54.70
		10	$ 50.54
		25	$ 48.16
		50	$ 45.78

Description

General part information

31-262 Series

The 31-262.025 is a double-pole double-throw (DPDT) 2NO-2NC illuminated Pushbutton Switch with maintained function and soldering terminals. The series-31 pushbutton is equipped with snap-action switching element.
