0852-0-15-20-83-14-11-0
ActiveMill-Max Manufacturing Corp.

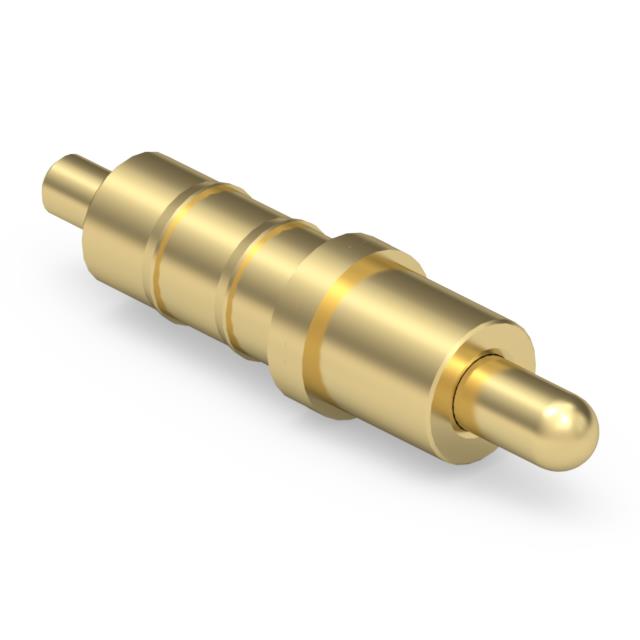

CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Search across all available documentation for this part.
0852-0-15-20-83-14-11-0
ActiveMill-Max Manufacturing Corp.
CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0852-0-15-20-83-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 8.8 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 5.58 mm |
| Maximum Working Height [Max] | 0.22 in |
| Minimum Working Height [Min] | 0.304 in |
| Minimum Working Height [Min] | 7.72 mm |
| Mounting Type | Through Hole |
| Operating Force - Initial | 30 gf |
| Operating Force - Mid Compression | 120 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 2.82 mm |
| Pad Layout Dimension [diameter] | 0.111 in |
| Plunger Size [diameter] | 1.27 mm |
| Plunger Size [diameter] | 0.05 in |
| Recommended Working Height [z] | 8.86 mm |
| Recommended Working Height [z] | 0.349 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.56 | |
| 10 | $ 1.36 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.22 | |||
| 250 | $ 1.10 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.87 | |||
| 2500 | $ 0.81 | |||
Description
General part information
0852-0 Series
Contact Spring Through Hole
Documents
Technical documentation and resources
No documents available
