W6C82-6SG-528

Active

Conxall/Switchcraft

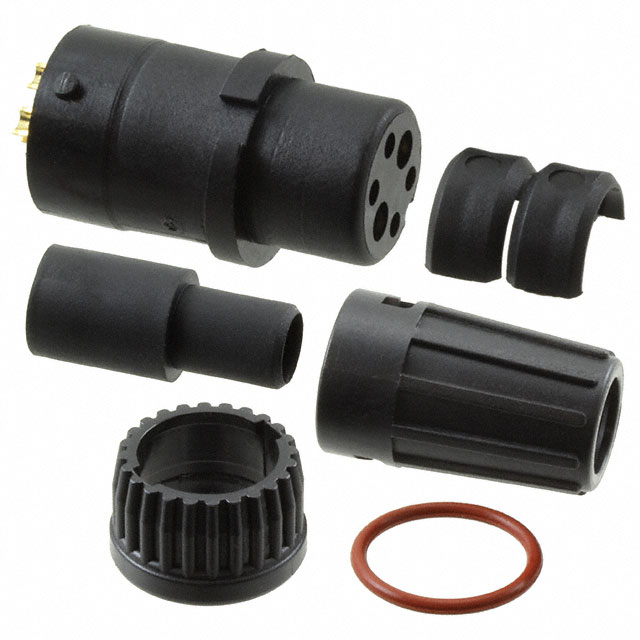

CONN PLUG FMALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W6C82-6SG-528

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Cable Opening [diameter]	6.6 mm
Cable Opening [diameter]	7.24 mm
Cable Opening [diameter]	0.285 in, 0.26 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	4
Number of Positions [custom]	6
Number of Positions [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	125 VDC

CONN PLUG FMALE 6P GOLD SLDR CUP

Part	Features	Primary Material	Ingress Protection	Mounting Type	Applications	Fastening Type	Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish - Mating	Shielding	Voltage Rating	Orientation	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Current Rating (Amps)	Connector Type
Conxall/Switchcraft W6C82-6SG-528	Backshell, Coupling Nut, UV Resistant	Plastic	IP67, IP69K	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Bayonet Lock	Black	4	6	2	Copper Alloy	6.6 mm	7.24 mm	0.26 in, 0.285 in	Gold	Unshielded	125 VDC	Keyed	Thermoplastic	85 °C	-40 °C	Thermoplastic	Varies by Wire Gauge	Female Sockets, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (4 + 2 Power) Position Circular Connector Plug, Female Sockets Solder Cup
