4-794635-2

Obsolete

TE Connectivity AMP Connectors

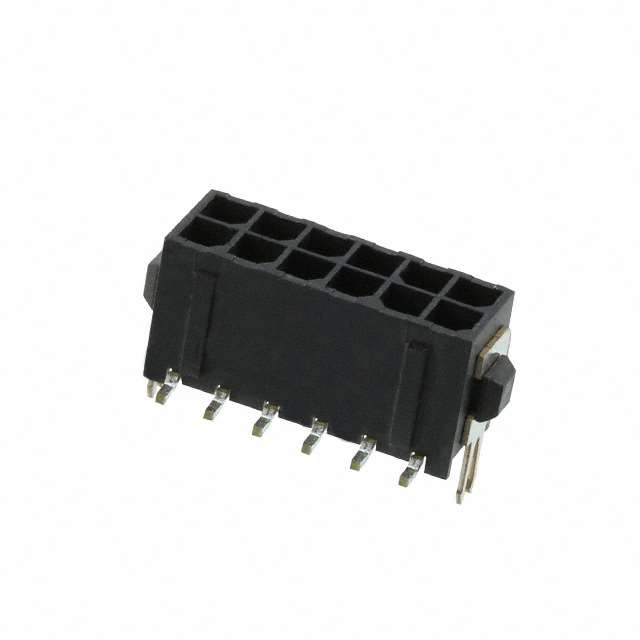

CONN HEADER SMD 12POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

4-794635-2

Obsolete

TE Connectivity AMP Connectors

CONN HEADER SMD 12POS 3MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

794635 Series

Connector Header Surface Mount 12 position 0.118" (3.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-794635-2	794635 Series

Applications	General Purpose, Industrial, Lighting	General Purpose, Industrial, Lighting
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Pick and Place, Board Lock	Pick and Place, Board Lock
Insulation Color	Black	Black
Insulation Height	9.25 mm	9.25 mm
Insulation Height	0.364 in	0.364 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	12	2 - 24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794635 Series

CONN HEADER SMD 20POS 3MM

Part	Material Flammability Rating	Termination	Features	Insulation Color	Contact Material	Voltage Rating	Applications	Number of Positions Loaded	Style	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Shape	Current Rating (Amps)	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Rows	Contact Finish - Post	Contact Type	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Fastening Type
TE Connectivity AMP Connectors 2-794635-0	UL94 V-0	Solder	Board Lock, Pick and Place	Black	Brass	250 VDC	General Purpose, Industrial, Lighting	All	Board to Cable/Wire	20	0.118 in	3 mm	Square	Varies by Wire Gauge	9.25 mm	0.364 in	105 ░C	-40 °C	Header	30 Áin	0.76 Ám	Surface Mount	2	Tin-Lead	Male Pin	Shrouded - 4 Wall	100 µin	2.54 µm	Gold	Nylon, Polyamide (PA)	3 mm	0.118 in	Locking Ramp
TE Connectivity AMP Connectors 3-794635-2	UL94 V-0	Solder	Board Lock, Pick and Place	Black	Brass	250 VDC	General Purpose, Industrial, Lighting	All	Board to Cable/Wire	2			Square	Varies by Wire Gauge	9.25 mm	0.364 in	105 ░C	-40 °C	Header	30 Áin	0.76 Ám	Surface Mount	2	Tin	Male Pin	Shrouded - 4 Wall	100 µin	2.54 µm	Gold	Nylon, Polyamide (PA)	3 mm	0.118 in	Locking Ramp
TE Connectivity AMP Connectors 5-794635-4	UL94 V-0	Solder	Board Lock, Pick and Place	Black	Brass	250 VDC	General Purpose, Industrial, Lighting	All	Board to Cable/Wire	24	0.118 in	3 mm	Square	Varies by Wire Gauge	9.25 mm	0.364 in	105 ░C	-40 °C	Header	30 Áin	0.76 Ám	Surface Mount	2	Tin	Male Pin	Shrouded - 4 Wall	100 µin	2.54 µm	Gold	Nylon, Polyamide (PA)	3 mm	0.118 in	Locking Ramp
TE Connectivity AMP Connectors 794635-6	UL94 V-0	Solder	Board Lock, Pick and Place	Black	Brass	250 VDC	General Purpose, Industrial, Lighting	All	Board to Cable/Wire	6	0.118 in	3 mm	Square	Varies by Wire Gauge	9.25 mm	0.364 in	105 ░C	-40 °C	Header	30 Áin	0.76 Ám	Surface Mount	2	Tin-Lead	Male Pin	Shrouded - 4 Wall	100 µin	2.54 µm	Gold	Nylon, Polyamide (PA)	3 mm	0.118 in	Locking Ramp
TE Connectivity AMP Connectors 1-794635-0	UL94 V-0	Solder	Board Lock, Pick and Place	Black	Brass	250 VDC	General Purpose, Industrial, Lighting	All	Board to Cable/Wire	10	0.118 in	3 mm	Square	Varies by Wire Gauge	9.25 mm	0.364 in	105 ░C	-40 °C	Header	30 Áin	0.76 Ám	Surface Mount	2	Tin-Lead	Male Pin	Shrouded - 4 Wall	100 µin	2.54 µm	Gold	Nylon, Polyamide (PA)	3 mm	0.118 in	Locking Ramp
TE Connectivity AMP Connectors 3-794635-4	UL94 V-0	Solder	Board Lock, Pick and Place	Black	Brass	250 VDC	General Purpose, Industrial, Lighting	All	Board to Cable/Wire	4	0.118 in	3 mm	Square	Varies by Wire Gauge	9.25 mm	0.364 in	105 ░C	-40 °C	Header	30 Áin	0.76 Ám	Surface Mount	2	Tin	Male Pin	Shrouded - 4 Wall	100 µin	2.54 µm	Gold	Nylon, Polyamide (PA)	3 mm	0.118 in	Locking Ramp
TE Connectivity AMP Connectors 4-794635-2	UL94 V-0	Solder	Board Lock, Pick and Place	Black	Brass	250 VDC	General Purpose, Industrial, Lighting	All	Board to Cable/Wire	12	0.118 in	3 mm	Square	Varies by Wire Gauge	9.25 mm	0.364 in	105 ░C	-40 °C	Header	30 Áin	0.76 Ám	Surface Mount	2	Tin	Male Pin	Shrouded - 4 Wall	100 µin	2.54 µm	Gold	Nylon, Polyamide (PA)	3 mm	0.118 in	Locking Ramp
